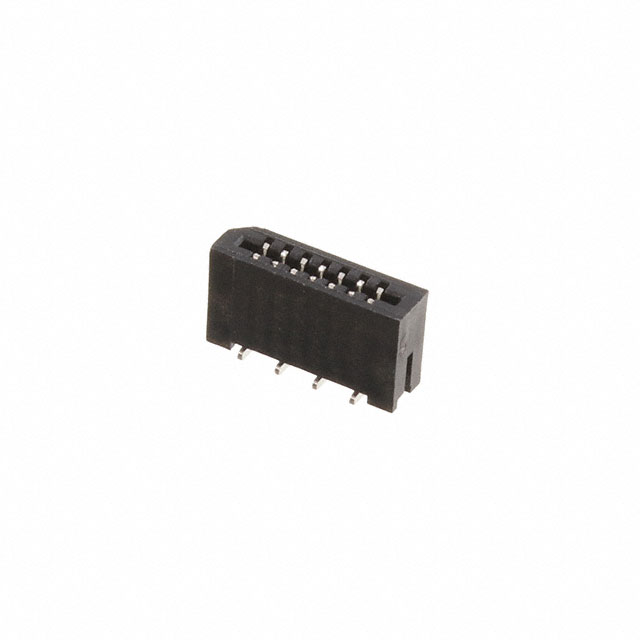

Images are for reference only
Add to Favourites
PCB-C-07-T-SMT
| Manufacturer | |
| Mfr. Part # | PCB-C-07-T-SMT |
| EBEE Part # | 9768205-PCB-C-07-T-SMT-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | CONN FFC FPC VERT 7POS 1MM SMD |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.5400 | $ 0.5400 |
| 10+ | $0.4600 | $ 4.6000 |
| 25+ | $0.4312 | $ 10.7800 |
| 61+ | $0.4048 | $ 24.6928 |
| 122+ | $0.3854 | $ 47.0188 |
| 305+ | $0.3612 | $ 110.1660 |
| 549+ | $0.3465 | $ 190.2285 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,FFC, FPC (Flat Flexible) Connector Assemblies | |
| Datasheet | ADAM TECH PCB-C-07-T-SMT | |
| Series | PCB | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Positions | 7 | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -55°C ~ 85°C | |
| Housing Color | Black | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Low Insertion Force (LIF) | |
| Base Product Number | PCB-C | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Mating Cycles | - | |
| Current Rating (Amps) | 0.5A | |
| Termination | Solder | |
| Pitch | 0.039" (1.00mm) | |
| Flat Flex Type | FFC, FPC | |
| FFC, FCB Thickness | 0.30mm | |
| Locking Feature | - | |
| Voltage Rating | - | |
| Housing Material | Thermoplastic | |
| Connector/Contact Type | Contacts, Vertical - 2 Sided | |
| Height Above Board | 0.220" (5.59mm) | |
| Cable End Type | Straight | |
| Actuator Material | - | |
| Actuator Color | - |
Description
7 Position FFC, FPC Connector Contacts, Vertical - 2 Sided 0.039" (1.00mm) Surface Mount
