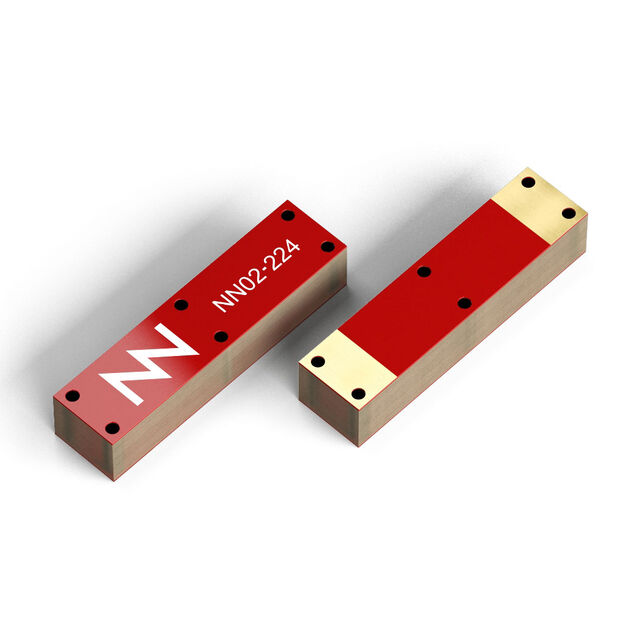

NN02-224
| Manufacturer | |
| Mfr. Part # | NN02-224 |
| EBEE Part # | 12296209-NN02-224-EB |
| Customer # | |
| EDA Models | |
| Description | RUN MXTEND MULTIBAND ANTENNA |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.8400 | $ 1.8400 |
| 10+ | $1.3560 | $ 13.5600 |
| 25+ | $1.2336 | $ 30.8400 |
| 100+ | $1.0995 | $ 109.9500 |
| 250+ | $1.0356 | $ 258.9000 |
| 500+ | $1.0255 | $ 512.7500 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | RF and Wireless ,RF Antennas | |
| Series | RUN mXTEND™ | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Mounting Type | Surface Mount | |
| Ingress Protection | - | |
| Grade | - | |
| Qualification | - | |
| Features | - | |
| Base Product Number | NN02 | |
| Applications | 2G, 3G, 4G, 5G, 802.11b/g/n/a/ac/ax, Beidou, Bluetooth, DCS, Galileo, Glonass, GNSS, GPS, GSM, LoRa, LTE, NB-IoT, PCS, Thread, UMTS, Wi-Fi, Wi-SUN, WLAN, Z-Wave, Zigbee | |
| Termination | Solder | |
| Height (Max) | 0.094" (2.40mm) | |
| Return Loss | - | |
| Frequency Range | 698MHz ~ 8GHz | |
| Gain | 1.8dBi, 2.1dBi, 2.2dBi, 1.9dBi, 2.9dBi, 3dBi, 3.3dBi, 4.2dBi | |
| RF Family/Standard | Bluetooth, Cellular, Navigation, WiFi | |
| Frequency Group | Ultra Wide Band | |
| Frequency (Center/Band) | 700MHz, 800MHz, 829MHz, 887MHz, 892MHz, 895.5MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.85GHz, 1.94GHz, 2.2GHz, 2.45GHz, 3.4GHz, 3.5GHz, 3.7GHz, 4GHz, 4.5GHz, 5GHz, 5.5GHz, 6.1GH | |
| Antenna Type | Chip | |
| VSWR | 3 |
Description
RF ANTENNA 2G, 3G, 4G, 5G, 802.11b/g/n/a/ac/ax, Beidou, Bluetooth, DCS, Galileo, Glonass, GNSS, GPS, GSM, LoRa, LTE, NB-IoT, PCS, Thread, UMTS, Wi-Fi, Wi-SUN, WLAN, Z-Wave, Zigbee Chip Solder Surface Mount
