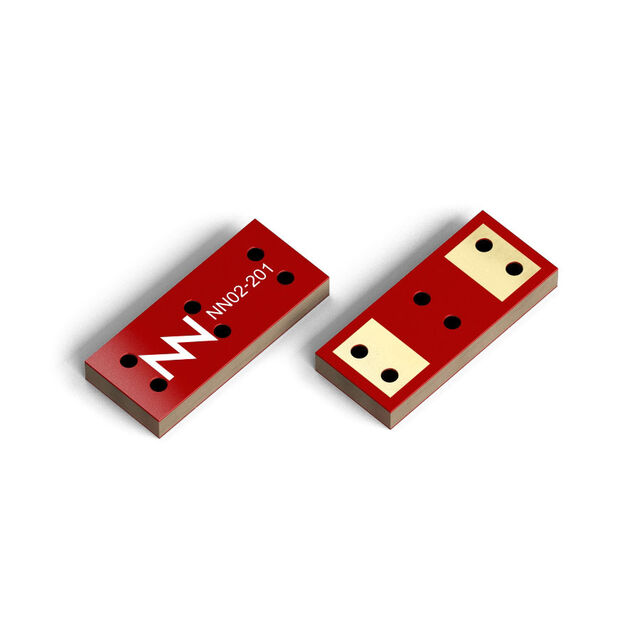

Images are for reference only
Add to Favourites
NN02-201
| Manufacturer | |
| Mfr. Part # | NN02-201 |
| EBEE Part # | 12296168-NN02-201-EB |
| Customer # | |
| EDA Models | |
| Description | ONE MXTEND MULTIBAND ANTENNA |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.8500 | $ 0.8500 |
| 10+ | $0.6090 | $ 6.0900 |
| 25+ | $0.5488 | $ 13.7200 |
| 100+ | $0.4820 | $ 48.2000 |
| 250+ | $0.4501 | $ 112.5250 |
| 500+ | $0.4309 | $ 215.4500 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | RF and Wireless ,RF Antennas | |
| Series | ONE mXTEND™ | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Mounting Type | Surface Mount | |
| Ingress Protection | - | |
| Grade | - | |
| Qualification | - | |
| Features | - | |
| Base Product Number | NN02 | |
| Applications | 2G, 3G, 4G, 5G, 802.11b/g/n/a/ac/ax, Beidou, Bluetooth, DCS, Galileo, Glonass, GNSS, GPS, GSM, LoRa, LTE, NB-IoT, PCS, Thread, UMTS, Wi-Fi, Wi-SUN, WLAN, Z-Wave, Zigbee | |
| Termination | Solder | |
| Height (Max) | 0.039" (1.00mm) | |
| Return Loss | - | |
| Frequency Range | 800MHz ~ 10.6GHz | |
| Gain | 1.9dBi, 1.3dBi, 1.7dBi, 2dBi, 3.2dBi, 3.1dBi, 3.3dBi, 5dBi | |
| RF Family/Standard | Bluetooth, Cellular, Navigation, WiFi | |
| Frequency Group | Ultra Wide Band | |
| Frequency (Center/Band) | - | |
| Antenna Type | Chip | |
| VSWR | 3 |
Description
RF ANTENNA 2G, 3G, 4G, 5G, 802.11b/g/n/a/ac/ax, Beidou, Bluetooth, DCS, Galileo, Glonass, GNSS, GPS, GSM, LoRa, LTE, NB-IoT, PCS, Thread, UMTS, Wi-Fi, Wi-SUN, WLAN, Z-Wave, Zigbee Chip Solder Surface Mount
