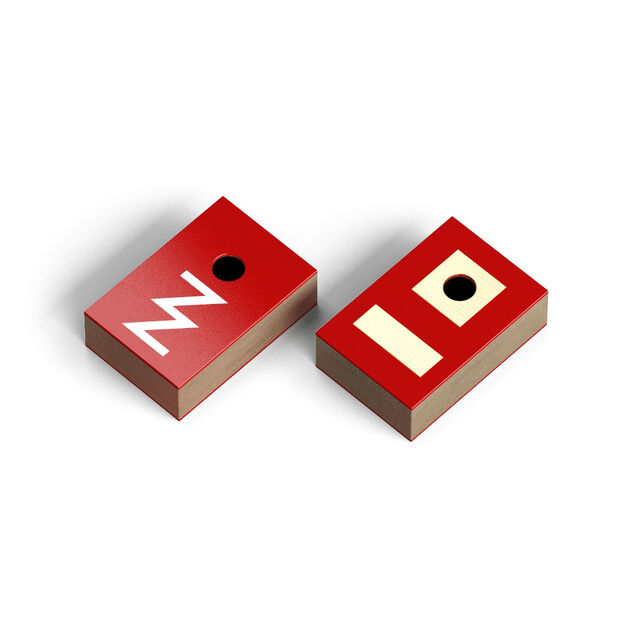

Images are for reference only
Add to Favourites
NN02-101
| Manufacturer | |
| Mfr. Part # | NN02-101 |
| EBEE Part # | 12296157-NN02-101-EB |
| Customer # | |
| EDA Models | |
| Description | NANO MXTEND MULTIBAND ANTENNA |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.6900 | $ 0.6900 |
| 10+ | $0.4890 | $ 4.8900 |
| 25+ | $0.4392 | $ 10.9800 |
| 100+ | $0.3842 | $ 38.4200 |
| 250+ | $0.3579 | $ 89.4750 |
| 500+ | $0.3421 | $ 171.0500 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | RF and Wireless ,RF Antennas | |
| Series | NANO mXTEND™ | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Mounting Type | Surface Mount | |
| Ingress Protection | - | |
| Grade | - | |
| Qualification | - | |
| Features | - | |
| Base Product Number | NN02 | |
| Applications | 802.11b/g/n/a/ac, Bluetooth, Wi-Fi | |
| Termination | Solder | |
| Height (Max) | 0.031" (0.80mm) | |
| Return Loss | - | |
| Frequency Range | 2.4GHz ~ 10.6GHz | |
| Gain | 2.4dBi, 3.6dBi, 3.1dBi | |
| RF Family/Standard | Bluetooth, WiFi | |
| Frequency Group | Ultra Wide Band | |
| Frequency (Center/Band) | 2.45GHz, 3.4GHz, 3.5GHz, 3.7GHz, 4GHz, 4.5GHz, 5GHz, 5.5GHz, 6.1GHz, 6.6GHz, 7.1GHz, 7.7GHz, 8.2GHz, 8.7GHz, 9.2GHz, 9.8GHz, 10.3GHz | |
| Antenna Type | Chip | |
| VSWR | 2.5 |
Description
RF ANTENNA 802.11b/g/n/a/ac, Bluetooth, Wi-Fi Chip Solder Surface Mount
