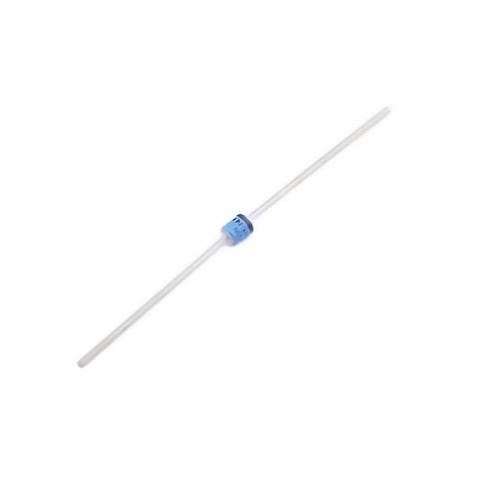

Images are for reference only
Add to Favourites
Microchip Tech 1N5809
| Manufacturer | |
| Mfr. Part # | 1N5809 |
| EBEE Part # | E82959832 |
| Package | Plugin |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 875mV@4A 30ns 3A 100V Plugin Fast Recovery / High Efficiency Diodes ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.3776 | $ 4.3776 |
| 10+ | $3.8417 | $ 38.4170 |
| 30+ | $3.5222 | $ 105.6660 |
| 100+ | $3.2011 | $ 320.1100 |
| 500+ | $3.0521 | $ 1526.0500 |
| 1000+ | $2.9846 | $ 2984.6000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Diodes ,Fast Recovery / High Efficiency Diodes | |
| Datasheet | Microchip Tech 1N5809 | |
| RoHS | ||
| Operating Temperature | -65℃~+175℃@(Tj) | |
| Reverse Voltage (Vr) | 100V | |
| Forward Voltage (Vf@If) | 875mV@4A | |
| Reverse Recovery Time (trr) | 30ns | |
| Reverse Leakage Current | 5uA@100V | |
| Rectified Current | 3A |
