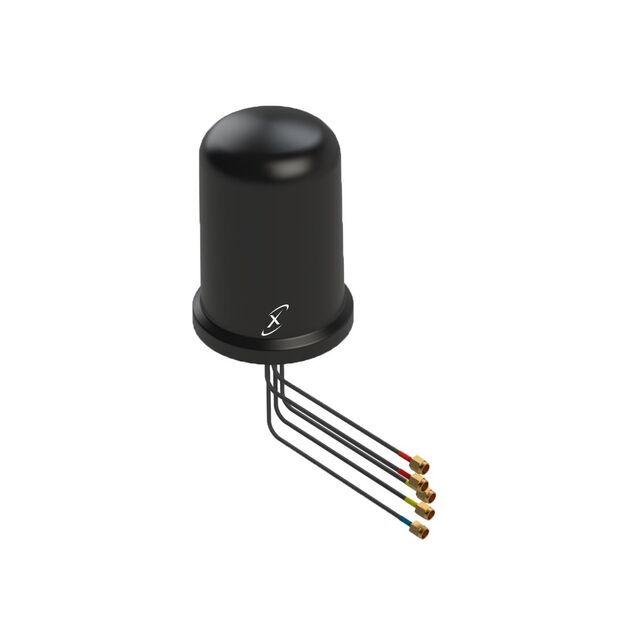

Images are for reference only
Add to Favourites
MEA-5in1-SMA/100-00243-01
| Manufacturer | |
| Mfr. Part # | MEA-5in1-SMA/100-00243-01 |
| EBEE Part # | 12299650-MEA-5in1-SMA/100-00243-01-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | 5GNR MIMO, 2.4/5.0/6.0 GHZ ISM A |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $177.0000 | $ 177.0000 |
| 10+ | $170.0000 | $ 1700.0000 |
| 25+ | $166.0000 | $ 4150.0000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | RF and Wireless ,Antennas | |
| Datasheet | Maxtena Inc MEA-5in1-SMA/100-00243-01 | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Mounting Type | Screw Mount | |
| Ingress Protection | IP67, IP69 | |
| Features | Cable - 2m | |
| Applications | 2G, 3G, 4G, 5G, BeiDou, Cat-M, GLONASS, GNSS, GPS, IoT, ISM, LTE, NB-IoT, QZSS, Wi-Fi | |
| Termination | SMA Male | |
| Height (Max) | 5.118" (130.00mm) | |
| Return Loss | -16dB, -15.3dB, -15.2dB, -14.2dB, -12.7dB, -12.2dB, -5.6dB, -5.5dB | |
| Frequency Range | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 1.559GHz ~ 1.61GHz, 2.41GHz ~ 2.49GHz, 3.3GHz ~ 5GHz, 4.92GHz ~ 5.925GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | |
| Gain | 1.3dBi, 23dBi, 23dBi, 3.6dBi, 5.6dBi, 4.7dBi, 5.5dBi, 4dBi, 3.8dBi | |
| RF Family/Standard | Cellular, Navigation, WiFi | |
| Frequency Group | Wide Band | |
| Frequency (Center/Band) | 788.5MHz, 1.575GHz, 1.604GHz, 2.058GHz, 4.15GHz, 2.45GHz, 2.422GHz, 5.537GHz, 6.525GHz | |
| Antenna Type | Dome | |
| Number of Bands | 9 | |
| VSWR | 1.5, 1.6, 1.9, 2, 3.7 | |
| Power - Max | 35 W |
Description
RF ANTENNA 2G, 3G, 4G, 5G, BeiDou, Cat-M, GLONASS, GNSS, GPS, IoT, ISM, LTE, NB-IoT, QZSS, Wi-Fi Dome SMA Male Screw Mount
