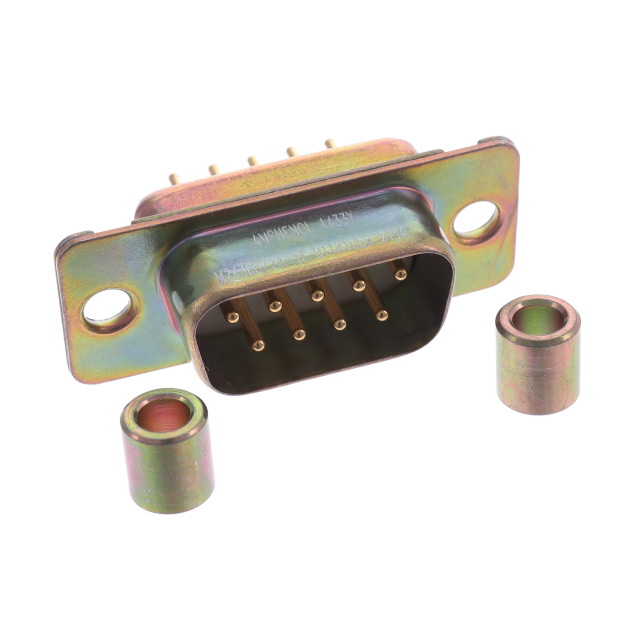

M24308/24-1F
| Manufacturer | |
| Mfr. Part # | M24308/24-1F |
| EBEE Part # | 9723334-M24308/24-1F-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | CONN D-SUB PLG 9POS PNL MNT SLDR |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $13.1200 | $ 13.1200 |
| 10+ | $10.6950 | $ 106.9500 |
| 25+ | $9.8600 | $ 246.5000 |
| 40+ | $9.4575 | $ 378.3000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,D-Sub / VGA Connectors | |
| Datasheet | Amphenol PCD M24308/24-1F | |
| Series | Military, MIL-C-24308, M24308 | |
| Packaging | Tray | |
| Part Status | Discontinued at Digi-Key | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 9 | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount, Through Hole | |
| Operating Temperature | -55°C ~ 125°C | |
| Ingress Protection | - | |
| Material Flammability Rating | UL94 V-0 | |
| Features | - | |
| Base Product Number | M24308/24 | |
| Mfr | Amphenol PCD | |
| Contact Material | Copper Alloy | |
| Wire Gauge | 20-26 AWG | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Current Rating (Amps) | 7.5A | |
| Termination | Solder | |
| Color | Natural | |
| Number of Rows | 2 | |
| Voltage Rating | - | |
| Connector Style | D-Sub | |
| Shell Size, Connector Layout | 1 (DE, E) | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Shell Material, Finish | Steel, Yellow Cadmium Plated | |
| Backset Spacing | - | |
| Contact Form | Machined | |
| Dielectric Material | Polyester, Glass Filled |
Description
9 Position D-Sub Plug, Male Pins Connector
