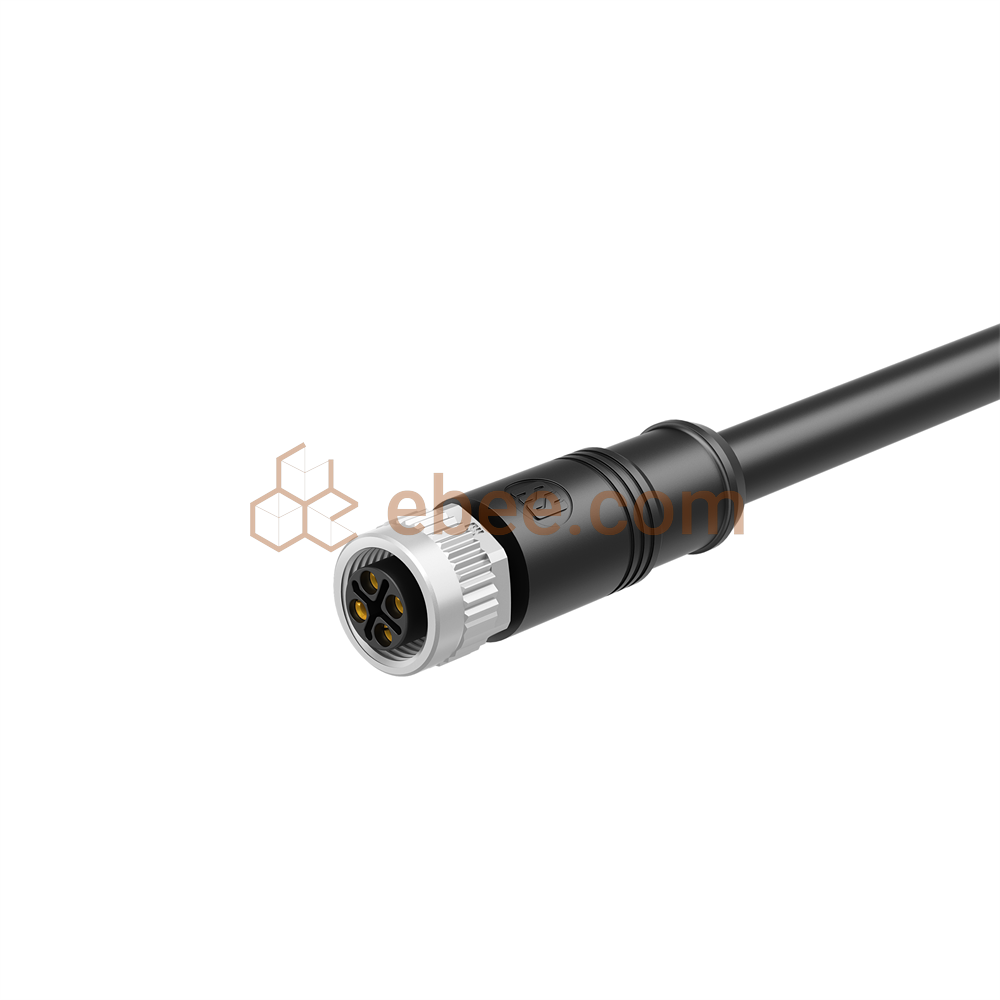

M12 4 Pin S Code Female Single-ended Cable Unshielded Straight PVC
| Manufacturer | |
| Mfr. Part # | RHT-634-10144-S-04-C-XXX |
| EBEE Part # | RHT-634-10144-S-04-C-XXX-EB |
| Customer # | |
| EDA Models | |
| Description |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: Full Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,M12 | |
| Contact Resistance | ≤5mΩ | |
| Insulation Material | PA66+GF | |
| Contact Finish | Gold | |
| Wire Gauge | 16AWG/1.5mm² | |
| Cable Material | PVC/PUR/TPU/Customized | |
| Rated Voltage | 630V AC/DC | |
| Shielding | Unshielded | |
| Temperature Range | -20℃ ~ +80℃ | |
| Protection Rating | IP67(Mated) | |
| Mating Cycles | ≥500 | |
| Rated Current | 12A | |
| Overmolding Material | PVC/TPU | |
| Coding | S | |
| Contact Termination | Solder Cup | |
| Seal | NBR, Black | |
| Number of Positions | 4 | |
| Screw Nut Material | Brass, Nickel Plated | |
| Part Type | Female | |
| Insulation Resistance | ≥100MΩ | |
| Contact Material | Brass | |
| Orientation | Straight |
