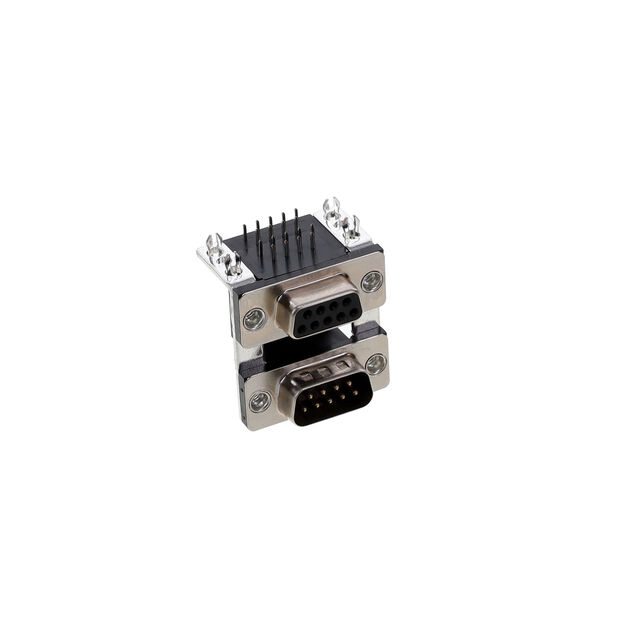

Name: K42X-E9P/S-A4NJ
Brand: Kycon, Inc.
SKU: 9701305-K42X-E9P/S-A4NJ-EB
Price: 7.13944 USD
Availability: OutOfStock

Language:

Manufacturer	Kycon, Inc.
Mfr. Part #	K42X-E9P/S-A4NJ
EBEE Part #	9701305-K42X-E9P/S-A4NJ-EB
Customer #
Datasheet	Kycon, Inc. K42X-E9P/S-A4NJ
EDA Models
Description	CONN D-SUB PLUG/RCPT 9P R/A SLDR

Type	Description	Select All
Category	Connectors ,D-Sub / VGA Connectors
Datasheet	Kycon, Inc. K42X-E9P/S-A4NJ
Series	K42X
Packaging	Tray
Part Status	Active
Connector Type	Plug, Male Pins; Receptacle, Female Sockets
Number of Positions	9, 9
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Operating Temperature	-55°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Features	Board Lock, Grounding Indents, Mounting Brackets
Base Product Number	K42X-E9P
Mfr	Kycon, Inc.
Contact Material	Brass, Phosphor Bronze
Wire Gauge	-
Contact Finish	Gold
Contact Finish Thickness	Flash
Current Rating (Amps)	1.2A
Termination	Solder
Color	Black
Number of Rows	2, 2
Voltage Rating	30V
Connector Style	D-Sub - Stacked
Shell Size, Connector Layout	1 (DE, E); 1 (DE, E)
Flange Feature	Mating Side, Female Screwlock (4-40)
Shell Material, Finish	Steel, Nickel Plated
Backset Spacing	0.318" (8.08mm)
Contact Form	-
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
