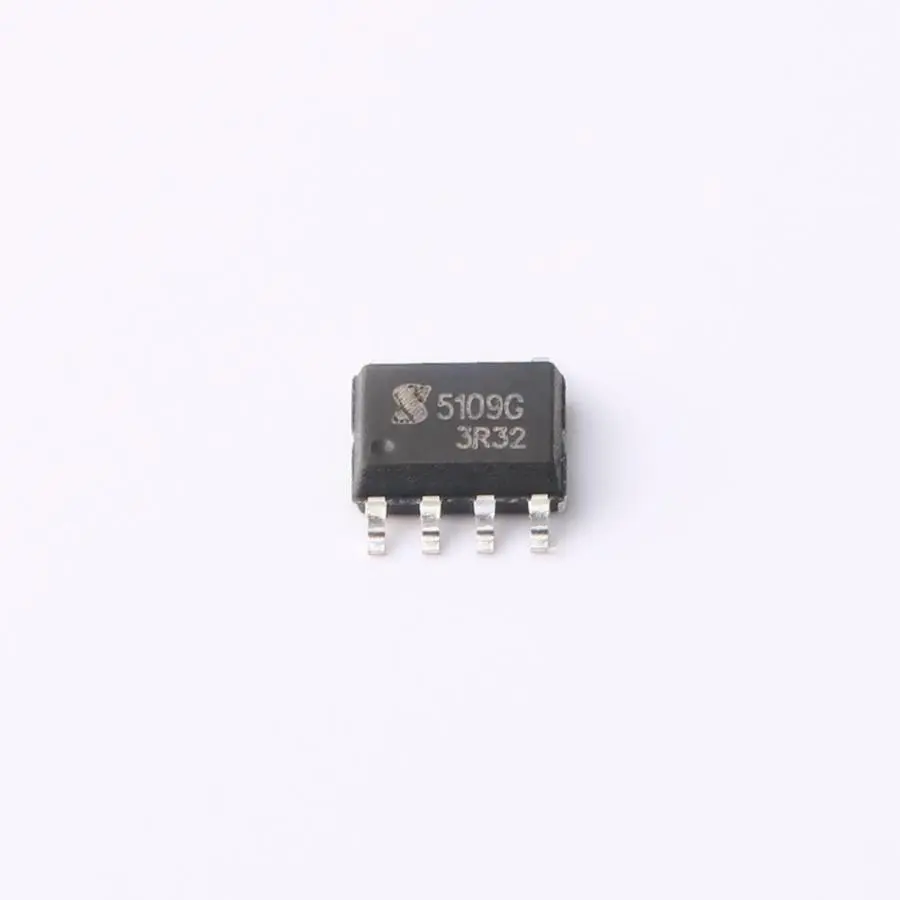

JSMSEMI JSM5109G
| Manufacturer | |
| Mfr. Part # | JSM5109G |
| EBEE Part # | E819077361 |
| Package | SOP-8 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | Half Bridge MOSFET 1.2A 6V~20V 1.5A SOP-8 Gate Drivers ROHS |
This materials supports customized cables!
Learn more >>
6795 In Stock for Fast Shipping
6795 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 5+ | $0.2579 | $ 1.2895 |
| 50+ | $0.2007 | $ 10.0350 |
| 150+ | $0.1762 | $ 26.4300 |
| 500+ | $0.1456 | $ 72.8000 |
| 2500+ | $0.1411 | $ 352.7500 |
| 4000+ | $0.1329 | $ 531.6000 |
Best price for more quantity?
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Integrated Circuits (ICs) ,Power Management (PMIC) ,Gate Drivers | |
| Datasheet | JSMSEMI JSM5109G | |
| RoHS |  | |
| Operating Temperature | -40℃~+125℃ | |
| Quiescent Current | 160uA | |
| Voltage - Supply | 9V~20V | |
| load type | MOSFET | |
| Features | Dead-time control;Interleaved conduction protection | |
| Driven Configuration | Half-Bridge | |
| Rise Time | 50ns | |
| Fall Time | 40ns | |
| Low Level Delay Time | - | |
| High Level Delay Time | - | |
| Current - Output High(IOH) | 1.2A | |
| Current - Output Low(IOL) | 1.5A | |
| Input Logic Level - Low | - | |
| Input Logic Level - High | - |
