- JSMSEMI BAW56

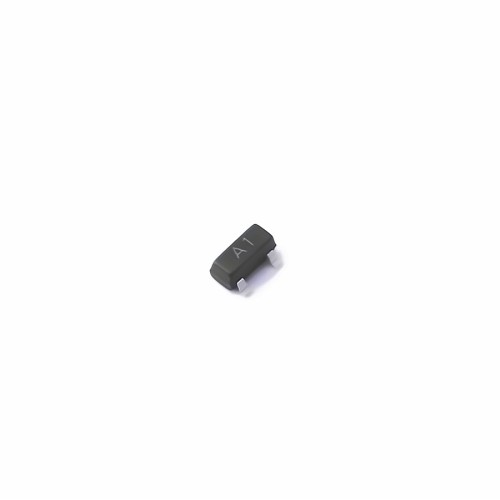

Images are for reference only
Add to Favourites
JSMSEMI BAW56
| Manufacturer | |
| Mfr. Part # | BAW56 |
| EBEE Part # | E8916419 |
| Package | SOT-23 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | 70V 1 pair common anode 1.25V@150mA 6ns 200mA SOT-23 Switching Diodes ROHS |
This materials supports customized cables!
Learn more >>560 In Stock for Fast Shipping
560 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 20+ | $0.0191 | $ 0.3820 |
| 200+ | $0.0147 | $ 2.9400 |
| 600+ | $0.0122 | $ 7.3200 |
| 3000+ | $0.0107 | $ 32.1000 |
| 9000+ | $0.0094 | $ 84.6000 |
| 21000+ | $0.0088 | $ 184.8000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Diodes ,Switching Diodes | |
| Datasheet | JSMSEMI BAW56 | |
| RoHS | ||
| Reverse Leakage Current (Ir) | 2.5uA@70V | |
| Diode Configuration | 1 Pair Common Anode | |
| Reverse Recovery Time (trr) | 6ns | |
| Voltage - DC Reverse (Vr) (Max) | 70V | |
| Voltage - Forward(Vf@If) | 1.25V@150mA | |
| Current - Rectified | 200mA | |
| Pd - Power Dissipation | 0.225W | |
| Non-Repetitive Peak Forward Surge Current | 500mA |
Shopping Guide
Expand
560 Stock for Shipping Fast
560 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 20+ | $0.0191 | $ 0.3820 |
| 200+ | $0.0147 | $ 2.9400 |
| 600+ | $0.0122 | $ 7.3200 |
| 3000+ | $0.0107 | $ 32.1000 |
| 9000+ | $0.0094 | $ 84.6000 |
| 21000+ | $0.0088 | $ 184.8000 |
Best price for more quantity?
$
