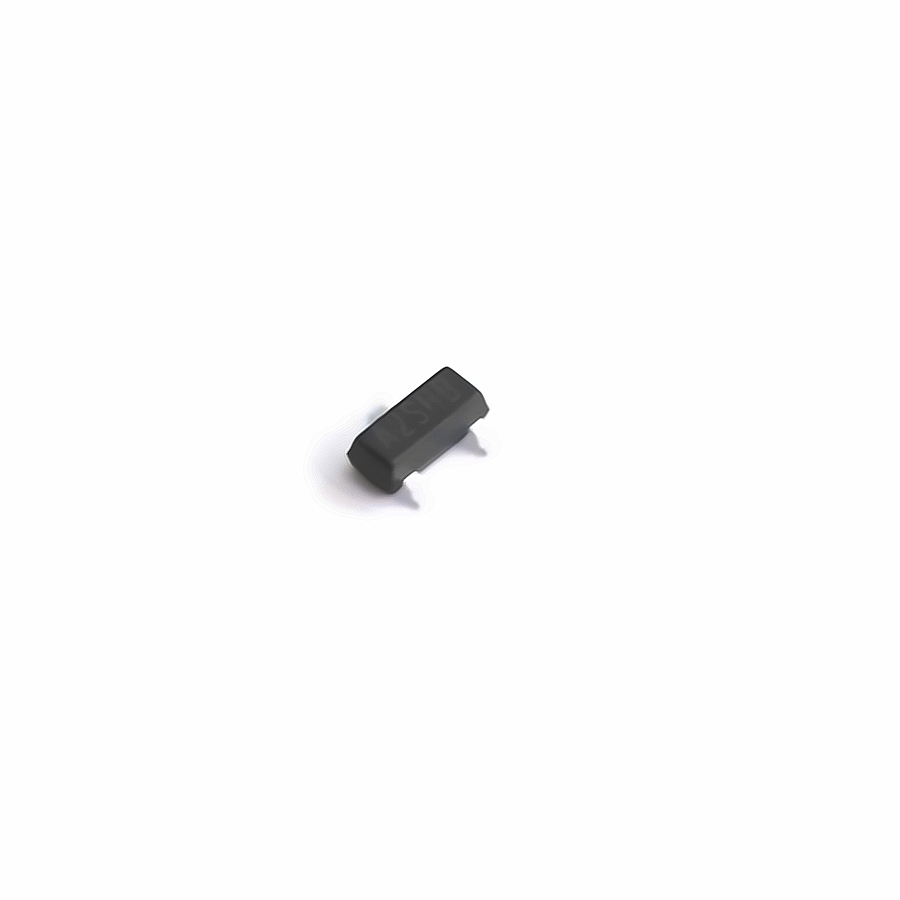

HL 2302
| Manufacturer | |
| Mfr. Part # | 2302 |
| EBEE Part # | E820071216 |
| Package | SOT-23 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 20V 3.6A 35mΩ 1.1V 1 N-channel SOT-23 MOSFETs ROHS |
This materials supports customized cables!
Learn more >>60850 In Stock for Fast Shipping
60850 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 50+ | $0.0113 | $ 0.5650 |
| 500+ | $0.0090 | $ 4.5000 |
| 3000+ | $0.0073 | $ 21.9000 |
| 6000+ | $0.0065 | $ 39.0000 |
| 24000+ | $0.0059 | $ 141.6000 |
| 51000+ | $0.0055 | $ 280.5000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Discrete Semiconductors ,FETs, MOSFETs ,Single FETs, MOSFETs | |
| Datasheet | HL 2302 | |
| RoHS | ||
| Type | N-Channel | |
| RDS(on) | 45mΩ@4.5V | |
| Operating Temperature - | -55℃~+150℃ | |
| Reverse Transfer Capacitance (Crss@Vds) | 34pF | |
| Number | 1 N-channel | |
| Pd - Power Dissipation | 1.05W | |
| Drain to Source Voltage | 20V | |
| Gate Threshold Voltage (Vgs(th)) | 1.1V | |
| Current - Continuous Drain(Id) | 3.6A | |
| Ciss-Input Capacitance | 180pF | |
| Output Capacitance(Coss) | 37pF | |
| Gate Charge(Qg) | 6.23nC@5V |
