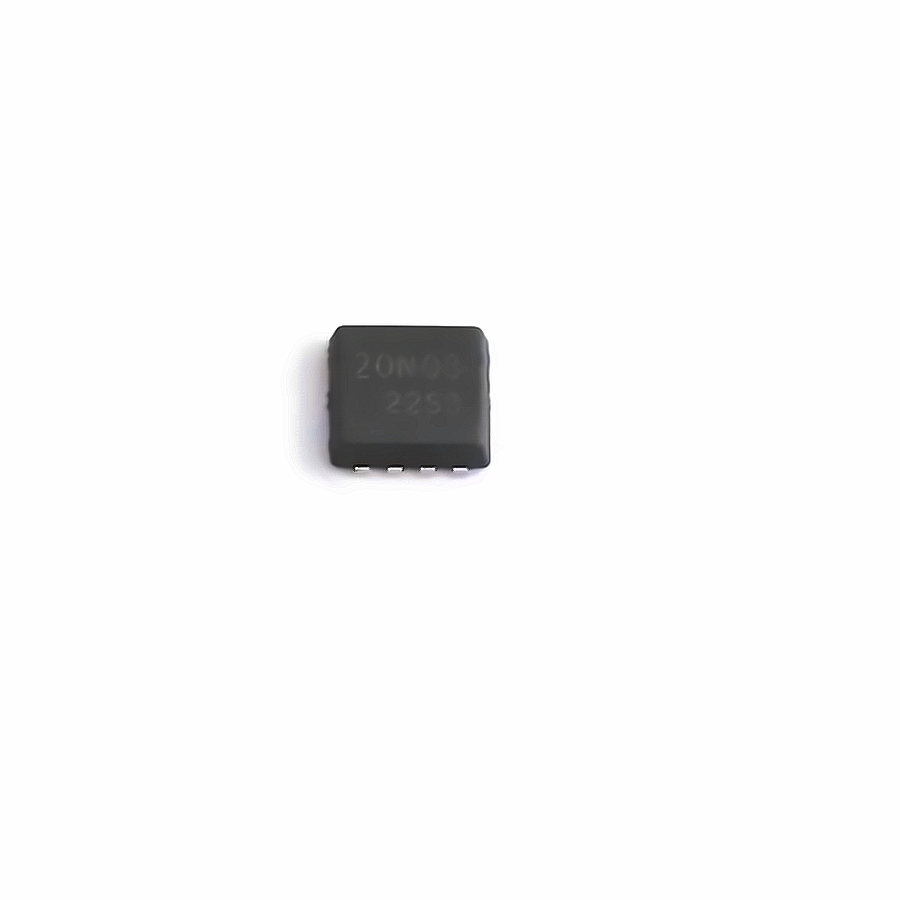

Images are for reference only
Add to Favourites
HL 20N03D
| Manufacturer | |
| Mfr. Part # | 20N03D |
| EBEE Part # | E819271463 |
| Package | PDFN(3x3) |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | 30V 20A 15mΩ 2.5V 1 N-channel PDFN(3x3) MOSFETs ROHS |
This materials supports customized cables!
Learn more >>9810 In Stock for Fast Shipping
9810 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 10+ | $0.0620 | $ 0.6200 |
| 100+ | $0.0484 | $ 4.8400 |
| 300+ | $0.0415 | $ 12.4500 |
| 1000+ | $0.0364 | $ 36.4000 |
| 5000+ | $0.0322 | $ 161.0000 |
| 10000+ | $0.0302 | $ 302.0000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Discrete Semiconductors ,FETs, MOSFETs ,Single FETs, MOSFETs | |
| Datasheet | HL 20N03D | |
| RoHS | ||
| Type | N-Channel | |
| RDS(on) | 20mΩ@10V | |
| Operating Temperature - | -55℃~+175℃ | |
| Reverse Transfer Capacitance (Crss@Vds) | 61pF | |
| Number | 1 N-channel | |
| Pd - Power Dissipation | 5.5W | |
| Drain to Source Voltage | 30V | |
| Gate Threshold Voltage (Vgs(th)) | 2.5V | |
| Current - Continuous Drain(Id) | 20A | |
| Ciss-Input Capacitance | 490pF | |
| Output Capacitance(Coss) | 79pF | |
| Gate Charge(Qg) | 10nC@10V |
