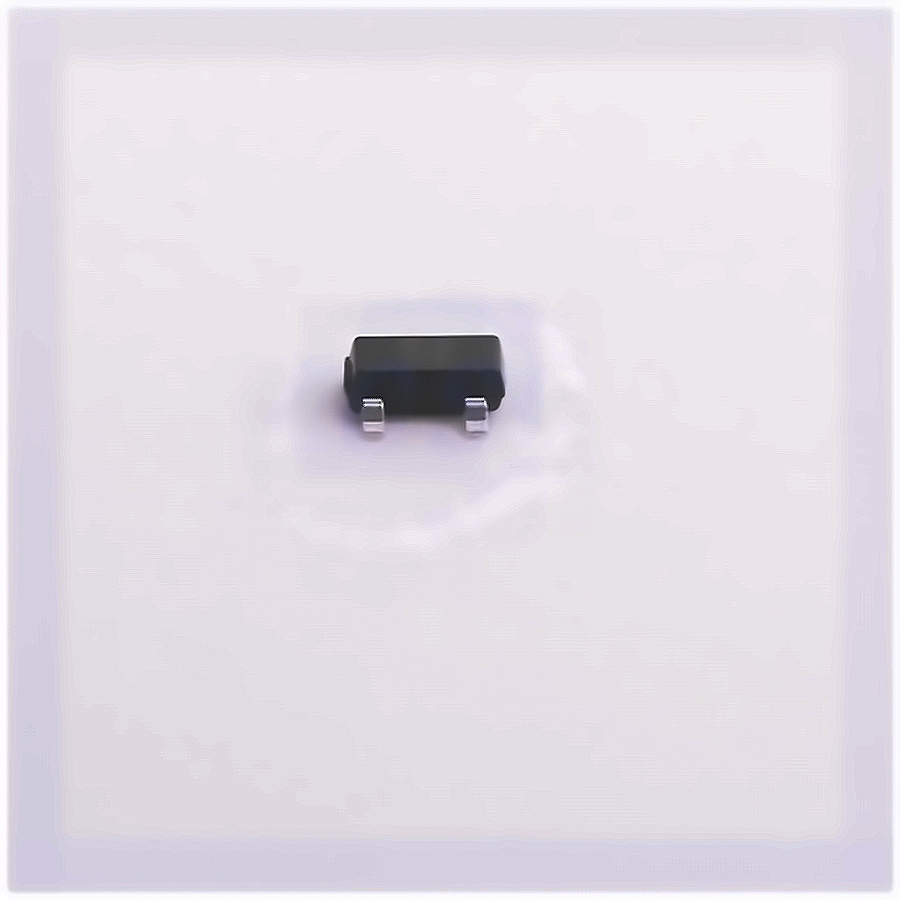

Images are for reference only
Add to Favourites
High Diode HD2302
| Manufacturer | |
| Mfr. Part # | HD2302 |
| EBEE Part # | E8466663 |
| Package | SOT-23 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | 20V 2.1A 400mW 115mΩ@2.5V,2.1A 0.65V@50uA 1 N-channel SOT-23 MOSFETs ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 20+ | $0.0352 | $ 0.7040 |
| 200+ | $0.0281 | $ 5.6200 |
| 600+ | $0.0246 | $ 14.7600 |
| 3000+ | $0.0217 | $ 65.1000 |
| 9000+ | $0.0196 | $ 176.4000 |
| 21000+ | $0.0185 | $ 388.5000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,MOSFETs | |
| Datasheet | High Diode HD2302 | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃ | |
| Type | 1 N-channel | |
| Drain Source Voltage (Vdss) | 20V | |
| Continuous Drain Current (Id) | 2.1A | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) | 115mΩ@2.5V,2.1A | |
| Power Dissipation (Pd) | 400mW | |
| Gate Threshold Voltage (Vgs(th)@Id) | 0.65V@50uA | |
| Reverse Transfer Capacitance (Crss@Vds) | 80pF@10V | |
| Input Capacitance (Ciss@Vds) | 300pF@10V | |
| Total Gate Charge (Qg@Vgs) | [email protected] |
