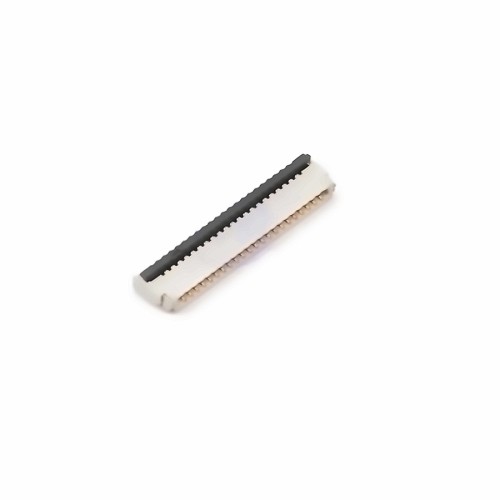

Images are for reference only
Add to Favourites
HCTL HC-FPC-05-09-22RLTAG
| Manufacturer | |
| Mfr. Part # | HC-FPC-05-09-22RLTAG |
| EBEE Part # | E85213756 |
| Package | SMD,P=0.5mm,Surface Mount，Right Angle |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | -55℃~+85℃ Flip type 22P Dual-sided contacts / top and bottom connection Horizontal attachment 0.5mm SMD,P=0.5mm,Surface Mount，Right Angle FFC, FPC (Flat Flexible) Connector Assemblies ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 5+ | $0.2632 | $ 1.3160 |
| 50+ | $0.2140 | $ 10.7000 |
| 150+ | $0.1930 | $ 28.9500 |
| 500+ | $0.1666 | $ 83.3000 |
| 2500+ | $0.1479 | $ 369.7500 |
| 4000+ | $0.1409 | $ 563.6000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,FFC, FPC (Flat Flexible) Connector Assemblies | |
| Datasheet | HCTL HC-FPC-05-09-22RLTAG | |
| RoHS | ||
| Operating Temperature Range | -55℃~+85℃ | |
| Contact Material | Copper alloy | |
| Pitch | 0.5mm | |
| Mounting Type | Horizontal attachment | |
| Number of Contacts | 22P | |
| Locking Feature | Flip type | |
| Height Above Board | 1mm | |
| Contact Type | Dual-sided contacts / top and bottom connection | |
| FFC, FCB Thickness | 0.3mm |
