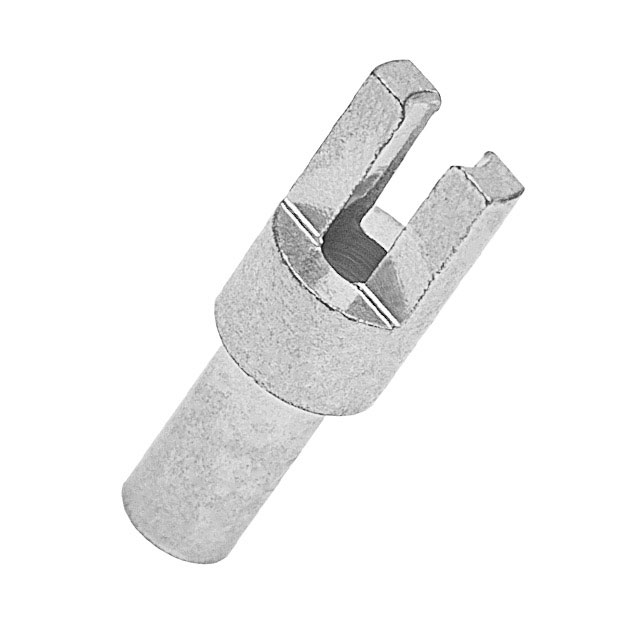

Images are for reference only
Add to Favourites
H9037-01
| Manufacturer | |
| Mfr. Part # | H9037-01 |
| EBEE Part # | 10872713-H9037-01-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | TERM TURRET HOLLOW L=3.96MM TIN |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Terminals | |
| Datasheet | Harwin Inc. H9037-01 | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Mounting Type | Through Hole | |
| Contact Material | Brass Alloy | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Board Thickness | 0.094" (2.39mm) | |
| Termination | Swage | |
| Length - Overall | 0.281" (7.14mm) | |
| Insulation Color | - | |
| Material - Insulation | - | |
| Terminal Type | Single End, Fork, Hollow | |
| Mounting Hole Diameter | 0.064" ~ 0.068" (1.63mm ~ 1.72mm) | |
| Insulation | Non-Insulated | |
| Flange Diameter | 0.094" (2.39mm) | |
| Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) | |
| Number of Turrets | Single | |
| Length - Above Board | 0.156" (3.96mm) | |
| Diameter - Turret Head | - | |
| Staking Side OD | 0.061" ~ 0.064" (1.55mm ~ 1.63mm) | |
| Staking Side ID | - |
Description
Terminal Turret Connector Single End, Fork, Hollow 0.156" (3.96mm) Tin
