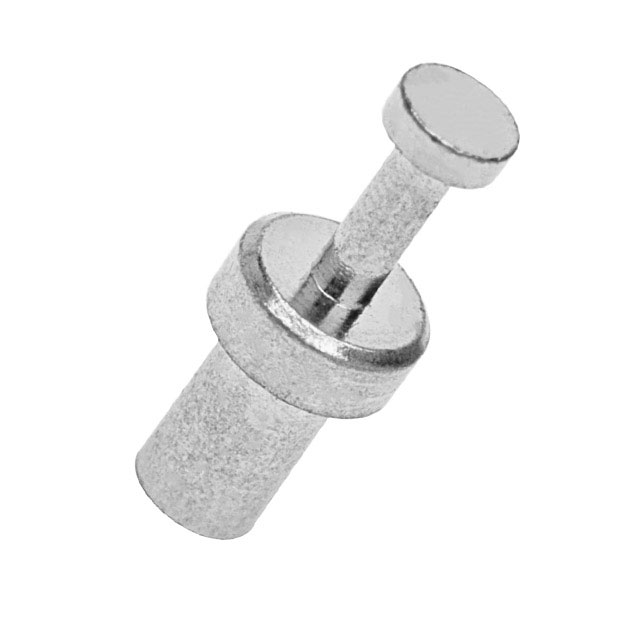

Images are for reference only
Add to Favourites
H9005-01
| Manufacturer | |
| Mfr. Part # | H9005-01 |
| EBEE Part # | 10872685-H9005-01-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | TERM TURRET SINGLE L=4.88MM TIN |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Terminals | |
| Datasheet | Harwin Inc. H9005-01 | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Mounting Type | Through Hole | |
| Contact Material | Brass Alloy | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Board Thickness | - | |
| Termination | Swage | |
| Length - Overall | 0.314" (7.98mm) | |
| Insulation Color | - | |
| Material - Insulation | - | |
| Terminal Type | Single End | |
| Mounting Hole Diameter | 0.079" ~ 0.082" (2.01mm ~ 2.08mm) | |
| Insulation | Non-Insulated | |
| Flange Diameter | 0.125" (3.18mm) | |
| Length - Below Flange | 0.125" ~ 0.130" (3.18mm ~ 3.30mm) | |
| Number of Turrets | Single | |
| Length - Above Board | 0.192" (4.88mm) | |
| Diameter - Turret Head | 0.078" (1.98mm) | |
| Staking Side OD | - | |
| Staking Side ID | 0.055" (1.40mm) |
Description
Terminal Turret Connector Single End 0.192" (4.88mm) Tin
