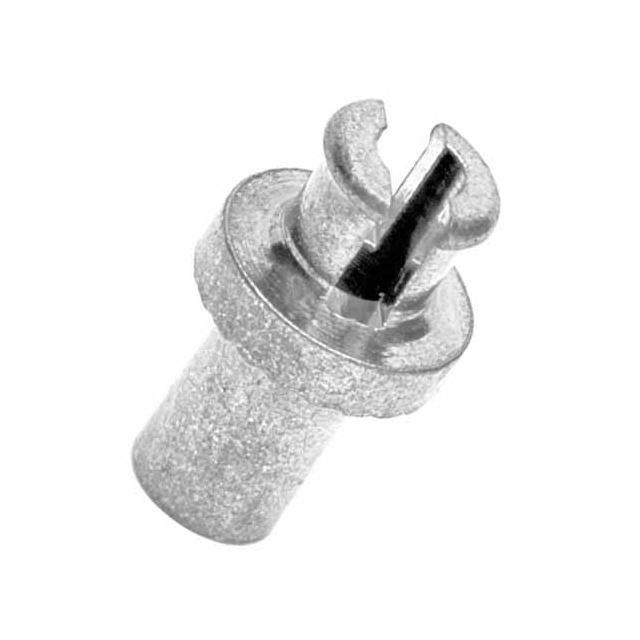

Images are for reference only
Add to Favourites
H2079-01
| Manufacturer | |
| Mfr. Part # | H2079-01 |
| EBEE Part # | 10872691-H2079-01-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | TERM TURRET HOLLOW L=3.45MM TIN |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Terminals | |
| Datasheet | Harwin Inc. H2079-01 | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Mounting Type | Through Hole | |
| Base Product Number | H2079 | |
| Contact Material | Brass Alloy | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Board Thickness | 0.094" (2.39mm) | |
| Termination | Swage | |
| Length - Overall | 0.265" (6.73mm) | |
| Insulation Color | - | |
| Material - Insulation | - | |
| Terminal Type | Single End, Hollow | |
| Mounting Hole Diameter | 0.095" ~ 0.099" (2.42mm ~ 2.52mm) | |
| Insulation | Non-Insulated | |
| Flange Diameter | 0.156" (3.96mm) | |
| Length - Below Flange | 0.130" (3.30mm) | |
| Number of Turrets | Single | |
| Length - Above Board | 0.136" (3.45mm) | |
| Diameter - Turret Head | 0.107" (2.73mm) | |
| Staking Side OD | 0.092" ~ 0.095" (2.34mm ~ 2.41mm) | |
| Staking Side ID | 0.052" ~ 0.055" (1.32mm ~ 1.40mm) |
Description
Terminal Turret Connector Single End, Hollow 0.136" (3.45mm) Tin
