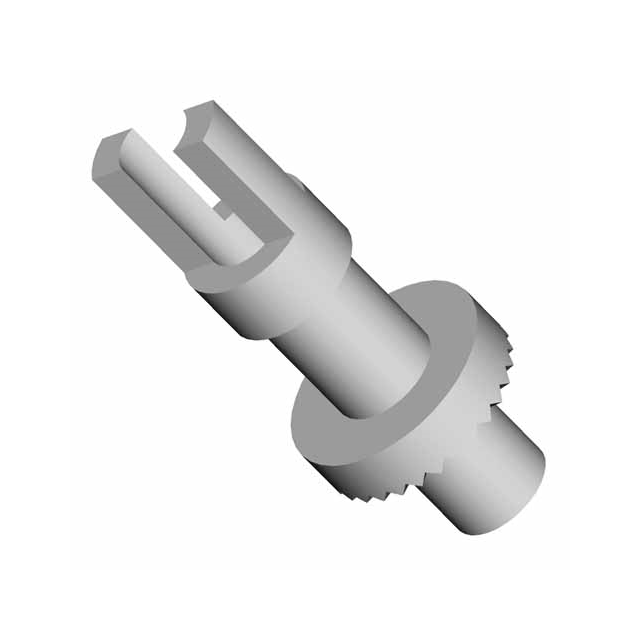

Images are for reference only
Add to Favourites
H2032-01
| Manufacturer | |
| Mfr. Part # | H2032-01 |
| EBEE Part # | 10872722-H2032-01-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | TERM TURRET HOLLOW L=9.53MM TIN |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Terminals | |
| Datasheet | Harwin Inc. H2032-01 | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Mounting Type | Through Hole | |
| Base Product Number | H2032 | |
| Contact Material | Brass Alloy | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Board Thickness | 0.063" (1.60mm) | |
| Termination | Swage | |
| Length - Overall | 0.469" (11.90mm) | |
| Insulation Color | - | |
| Material - Insulation | - | |
| Terminal Type | Single End, Fork, Hollow | |
| Mounting Hole Diameter | 0.094" ~ 0.097" (2.39mm ~ 2.46mm) | |
| Insulation | Non-Insulated | |
| Flange Diameter | 0.187" (4.75mm) | |
| Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) | |
| Number of Turrets | Single | |
| Length - Above Board | 0.375" (9.53mm) | |
| Diameter - Turret Head | 0.120" ~ 0.125" (3.05mm ~ 3.18mm) | |
| Staking Side OD | 0.091" ~ 0.094" (2.31mm ~ 2.39mm) | |
| Staking Side ID | 0.067" ~ 0.070" (1.70mm ~ 1.78mm) |
Description
Terminal Turret Connector Single End, Fork, Hollow 0.375" (9.53mm) Tin
