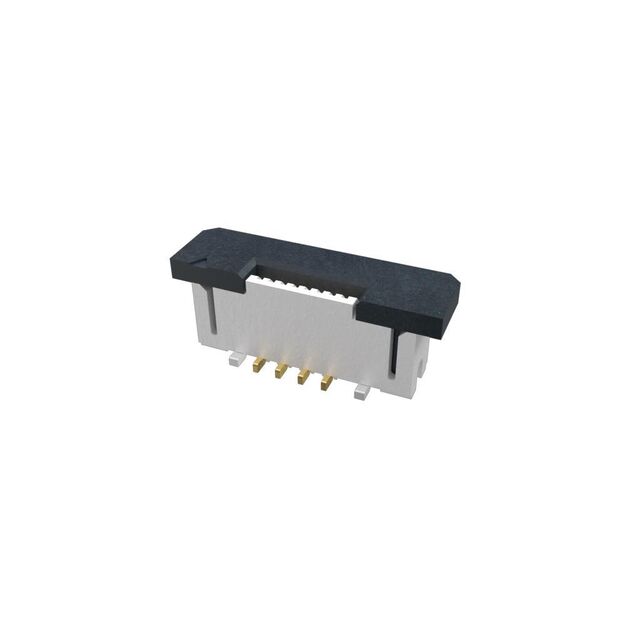

F31Z-1AAF1-11020
| Manufacturer | |
| Mfr. Part # | F31Z-1AAF1-11020 |
| EBEE Part # | 9774384-F31Z-1AAF1-11020-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | F31Z-1AAF1-11020-SLIDER TYPE |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,FFC, FPC (Flat Flexible) Connector Assemblies | |
| Datasheet | Amphenol ICC (FCI) F31Z-1AAF1-11020 | |
| Series | Aorora F31Z | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Positions | 20 | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 105°C | |
| Housing Color | Natural | |
| Material Flammability Rating | UL94 V-0 | |
| Features | - | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 2.00µin (0.051µm) | |
| Mating Cycles | 30 | |
| Current Rating (Amps) | 0.5A | |
| Termination | Solder | |
| Pitch | 0.020" (0.50mm) | |
| Flat Flex Type | FFC, FPC | |
| FFC, FCB Thickness | 0.30mm | |
| Locking Feature | Slide Lock | |
| Voltage Rating | 50V | |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | |
| Connector/Contact Type | Contacts, Top and Bottom | |
| Height Above Board | 0.165" (4.20mm) | |
| Cable End Type | Straight, Tapered | |
| Actuator Material | - | |
| Actuator Color | - |
Description
20 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount
