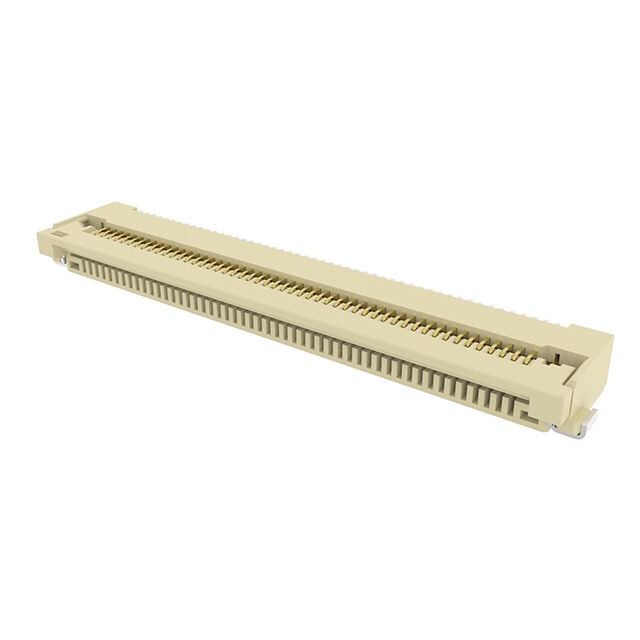

Images are for reference only
Add to Favourites
F3041A7H111070E200
| Manufacturer | |
| Mfr. Part # | F3041A7H111070E200 |
| EBEE Part # | 9774287-F3041A7H111070E200-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | FLEX CONNECTOR, P=0.50MM, H=2.50 |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,FFC, FPC (Flat Flexible) Connector Assemblies | |
| Datasheet | Amphenol ICC (FCI) F3041A7H111070E200 | |
| Series | Aorora F304 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Positions | 70 | |
| Mounting Type | Surface Mount, Right Angle | |
| Operating Temperature | -40°C ~ 105°C | |
| Housing Color | Natural | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Solder Retention | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 2.00µin (0.051µm) | |
| Mating Cycles | 20 | |
| Current Rating (Amps) | 0.5A | |
| Termination | Solder | |
| Pitch | 0.020" (0.50mm) | |
| Flat Flex Type | FFC, FPC | |
| FFC, FCB Thickness | 0.30mm | |
| Locking Feature | Flip Lock | |
| Voltage Rating | 50V | |
| Housing Material | Liquid Crystal Polymer (LCP) | |
| Connector/Contact Type | Contacts, Top and Bottom | |
| Height Above Board | 0.098" (2.50mm) | |
| Cable End Type | Notched | |
| Actuator Material | Polyamide (PA9T), Nylon 9T | |
| Actuator Color | Black |
Description
70 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
