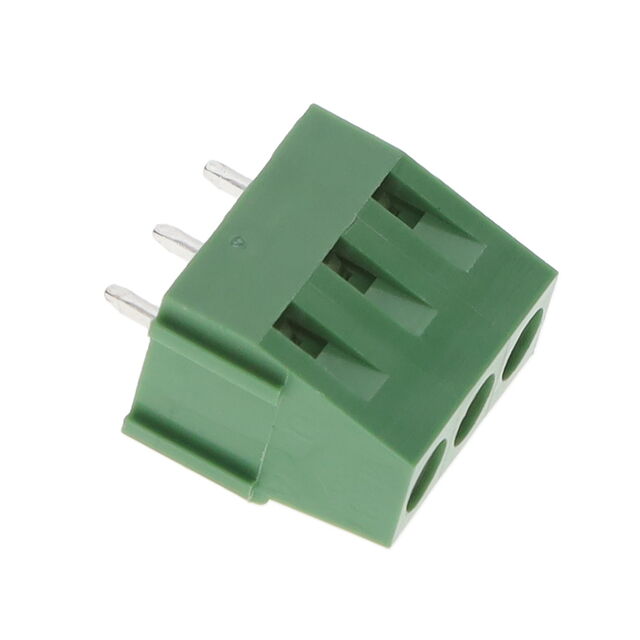

EM258503V
| Manufacturer | |
| Mfr. Part # | EM258503V |
| EBEE Part # | 10826139-EM258503V-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | TERM BLK 3POS SIDE ENTRY 5MM PCB |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.5500 | $ 2.5500 |
| 10+ | $1.8250 | $ 18.2500 |
| 25+ | $1.5916 | $ 39.7900 |
| 50+ | $1.4428 | $ 72.1400 |
| 100+ | $1.3176 | $ 131.7600 |
| 300+ | $1.1637 | $ 349.1100 |
| 500+ | $1.1082 | $ 554.1000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors, Interconnects ,Terminal Blocks ,Barrier Blocks | |
| Datasheet | Eaton - Electronics Division EM258503V | |
| Series | Euro-Mag EM2585 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Mounting Type | Through Hole | |
| Operating Temperature | -40°C ~ 105°C | |
| Features | Interlocking (Side) | |
| Wire Gauge | 12-26 AWG | |
| Pitch | 0.197" (5.00mm) | |
| Color | - | |
| Housing Material | Thermoplastic | |
| Voltage | 300 V | |
| Current | 16 A | |
| Contact Material - Plating | Brass - Tin Plated | |
| Number of Levels | 1 | |
| Positions Per Level | 3 | |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) | |
| Mating Orientation | Horizontal with Board | |
| Wire Termination | Screw - Rising Cage Clamp | |
| Clamp Material - Plating | - | |
| Screw Material - Plating | Steel - Zinc Plated | |
| Screw Thread | M3 |
Description
3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
