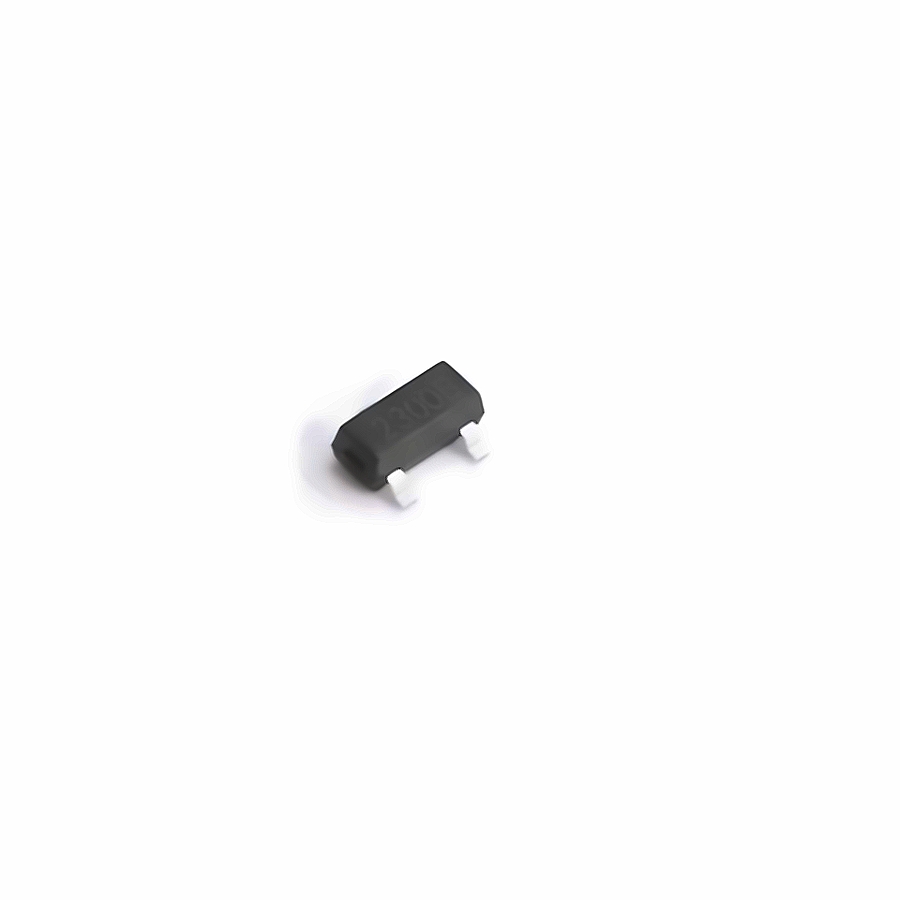

Images are for reference only
Add to Favourites
DOINGTER DO2300B
| Manufacturer | |
| Mfr. Part # | DO2300B |
| EBEE Part # | E841367404 |
| Package | SOT-23 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | 20V 5.2A 25mΩ@4.5V,5.2A 1.25W 1.5V@250uA 1 N-channel SOT-23 MOSFETs ROHS |
This materials supports customized cables!
Learn more >>12860 In Stock for Fast Shipping
12860 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 50+ | $0.0154 | $ 0.7700 |
| 500+ | $0.0124 | $ 6.2000 |
| 3000+ | $0.0106 | $ 31.8000 |
| 6000+ | $0.0097 | $ 58.2000 |
| 24000+ | $0.0087 | $ 208.8000 |
| 51000+ | $0.0083 | $ 423.3000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,MOSFETs | |
| Datasheet | DOINGTER DO2300B | |
| RoHS | ||
| Operating Temperature | -50℃~+155℃ | |
| Type | 1 N-channel | |
| Drain Source Voltage (Vdss) | 20V | |
| Continuous Drain Current (Id) | 5.2A | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) | 25mΩ@4.5V,5.2A | |
| Power Dissipation (Pd) | 1.25W | |
| Gate Threshold Voltage (Vgs(th)@Id) | 1.5V@250uA | |
| Reverse Transfer Capacitance (Crss@Vds) | 60pF@10V | |
| Input Capacitance (Ciss@Vds) | 630pF@10V | |
| Total Gate Charge (Qg@Vgs) | 11nC@10V |
