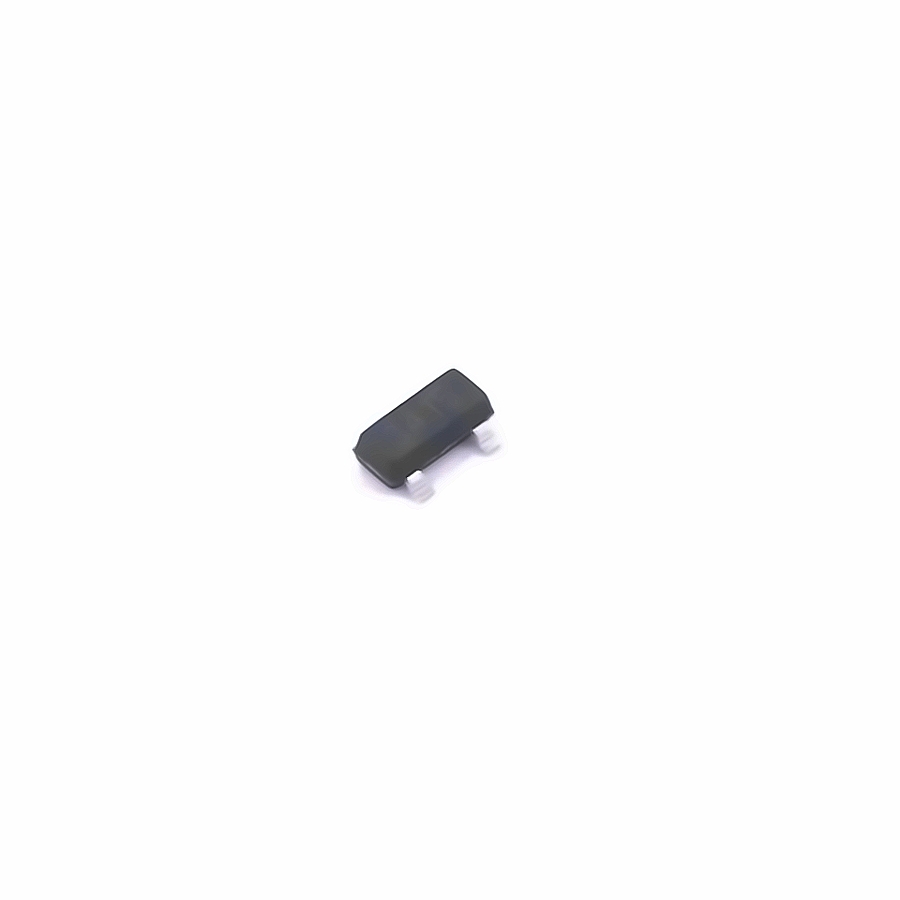

Images are for reference only
Add to Favourites
Doeshare DP3415
| Manufacturer | |
| Mfr. Part # | DP3415 |
| EBEE Part # | E82931753 |
| Package | SOT-23 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | 20V 4.2A 1.3W 42mΩ@4.5V,5A 950mV@250uA 1 Piece P-Channel SOT-23 MOSFETs ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 10+ | $0.0513 | $ 0.5130 |
| 100+ | $0.0422 | $ 4.2200 |
| 300+ | $0.0376 | $ 11.2800 |
| 3000+ | $0.0301 | $ 90.3000 |
| 6000+ | $0.0275 | $ 165.0000 |
| 9000+ | $0.0261 | $ 234.9000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Discrete Semiconductors ,FETs, MOSFETs ,Single FETs, MOSFETs | |
| Datasheet | Doeshare DP3415 | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃ | |
| Type | 1 Piece P-Channel | |
| Drain Source Voltage (Vdss) | 20V | |
| Continuous Drain Current (Id) | 4.2A | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) | 42mΩ@4.5V,5A | |
| Power Dissipation (Pd) | 1.3W | |
| Gate Threshold Voltage (Vgs(th)@Id) | 950mV@250uA | |
| Reverse Transfer Capacitance (Crss@Vds) | 116pF@10V | |
| Input Capacitance (Ciss@Vds) | 940pF@10V | |
| Total Gate Charge (Qg@Vgs) | [email protected] |
