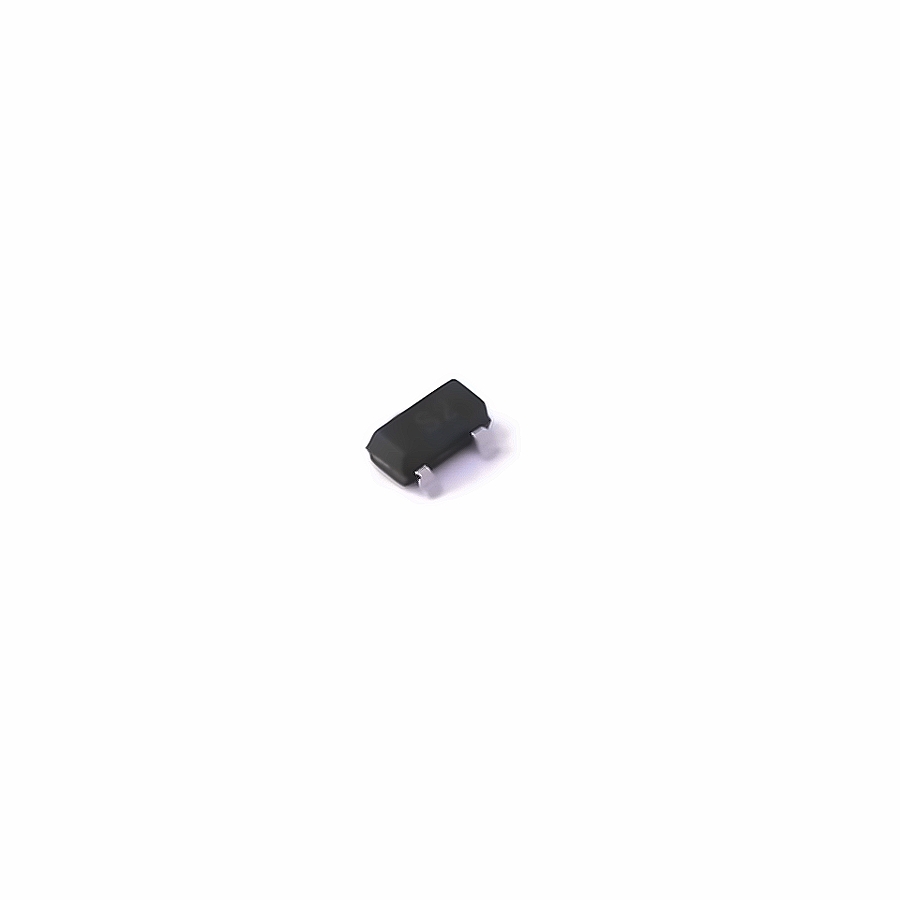

Images are for reference only
Add to Favourites
Doeshare DN2302
| Manufacturer | |
| Mfr. Part # | DN2302 |
| EBEE Part # | E82931749 |
| Package | SOT-23 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | 20V 4.5A 45mΩ@2.5V,1A 1.2W 1V@250uA 1 N-channel SOT-23 MOSFETs ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 20+ | $0.0327 | $ 0.6540 |
| 200+ | $0.0262 | $ 5.2400 |
| 600+ | $0.0227 | $ 13.6200 |
| 3000+ | $0.0184 | $ 55.2000 |
| 9000+ | $0.0166 | $ 149.4000 |
| 21000+ | $0.0155 | $ 325.5000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Discrete Semiconductors ,FETs, MOSFETs ,Single FETs, MOSFETs | |
| Datasheet | Doeshare DN2302 | |
| RoHS | ||
| Operating Temperature | -50℃~+150℃ | |
| Type | 1 N-channel | |
| Drain Source Voltage (Vdss) | 20V | |
| Continuous Drain Current (Id) | 4.5A | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) | 45mΩ@2.5V,1A | |
| Power Dissipation (Pd) | 1.2W | |
| Gate Threshold Voltage (Vgs(th)@Id) | 1V@250uA | |
| Reverse Transfer Capacitance (Crss@Vds) | 42pF@10V | |
| Input Capacitance (Ciss@Vds) | 280pF@10V | |
| Total Gate Charge (Qg@Vgs) | 4.7nC@10V |
