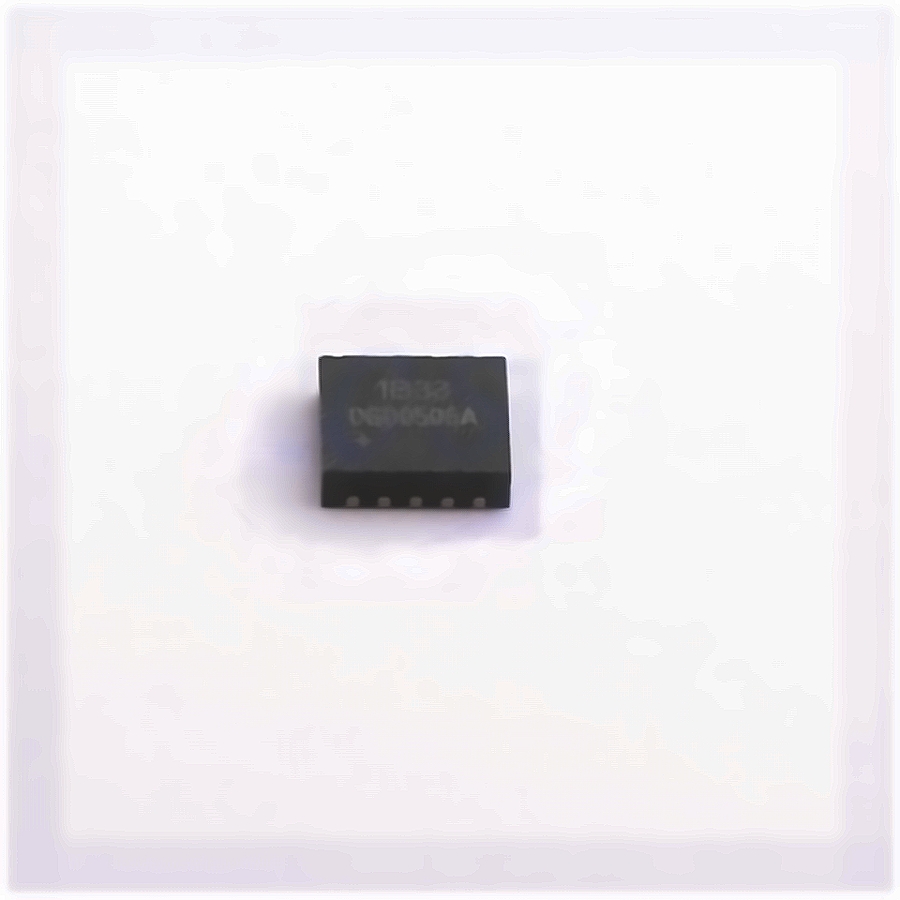

Diodes Incorporated DGD0506AFN-7
| Manufacturer | |
| Mfr. Part # | DGD0506AFN-7 |
| EBEE Part # | E8460680 |
| Package | DFN3030-10-EP |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | Half Bridge 2 MOSFET 1.5A 17ns 12ns 8V~14V 2A DFN3030-10-EP Gate Drivers ROHS |
This materials supports customized cables!
Learn more >>4 In Stock for Fast Shipping
4 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.6732 | $ 0.6732 |
| 10+ | $0.5373 | $ 5.3730 |
| 30+ | $0.4694 | $ 14.0820 |
| 100+ | $0.4030 | $ 40.3000 |
| 500+ | $0.3619 | $ 180.9500 |
| 1000+ | $0.3414 | $ 341.4000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Motor Driver ICs ,Gate Drivers | |
| Datasheet | Diodes Incorporated DGD0506AFN-7 | |
| RoHS | ||
| Operating Temperature | -40℃~+125℃ | |
| Voltage - Supply | 8V~14V | |
| load type | MOSFET | |
| Features | Under Voltage Protection | |
| Driven Configuration | Half-Bridge | |
| Rise Time | 17ns | |
| Fall Time | 12ns | |
| Peak Output Current(sink) | 2A | |
| Current - Output High(IOH) | 1.5A | |
| Quiescent Current(Iq) | 280uA |
