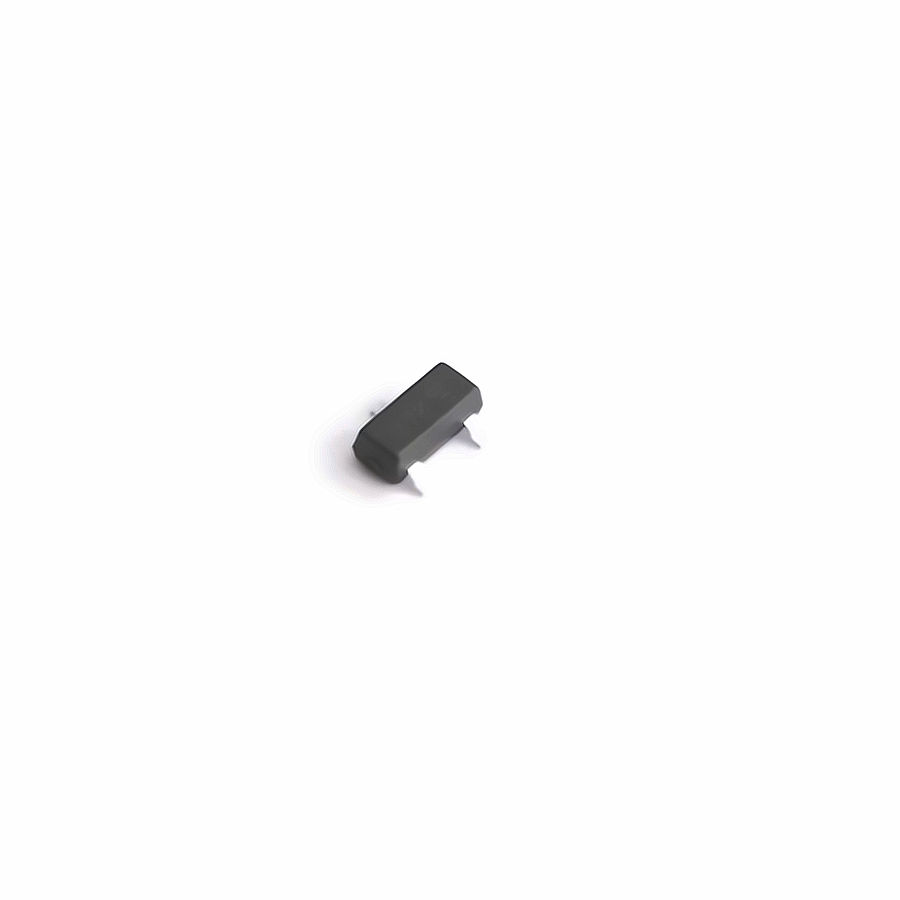

Images are for reference only
Add to Favourites
Diodes Incorporated 2N7002KQ-13
| Manufacturer | |
| Mfr. Part # | 2N7002KQ-13 |
| EBEE Part # | E8526325 |
| Package | SOT-23 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 60V 380mA 370mW 2Ω@10V 2.5V@1mA 1 N-Channel SOT-23 MOSFETs ROHS |
This materials supports customized cables!
Learn more >>3460 In Stock for Fast Shipping
3460 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 10+ | $0.0294 | $ 0.2940 |
| 100+ | $0.0235 | $ 2.3500 |
| 300+ | $0.0205 | $ 6.1500 |
| 1000+ | $0.0184 | $ 18.4000 |
| 5000+ | $0.0166 | $ 83.0000 |
| 10000+ | $0.0157 | $ 157.0000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,MOSFETs | |
| Datasheet | Diodes Incorporated 2N7002KQ-13 | |
| RoHS | ||
| RDS(on) | 2Ω@10V | |
| Operating Temperature - | -55℃~+150℃ | |
| Reverse Transfer Capacitance (Crss@Vds) | 5pF | |
| Number | 1 N-channel | |
| Pd - Power Dissipation | 370mW | |
| Drain to Source Voltage | 60V | |
| Gate Threshold Voltage (Vgs(th)) | 2.5V | |
| Current - Continuous Drain(Id) | 380mA | |
| Ciss-Input Capacitance | 50pF | |
| Output Capacitance(Coss) | 4.2pF | |
| Gate Charge(Qg) | 300pC@10V |
