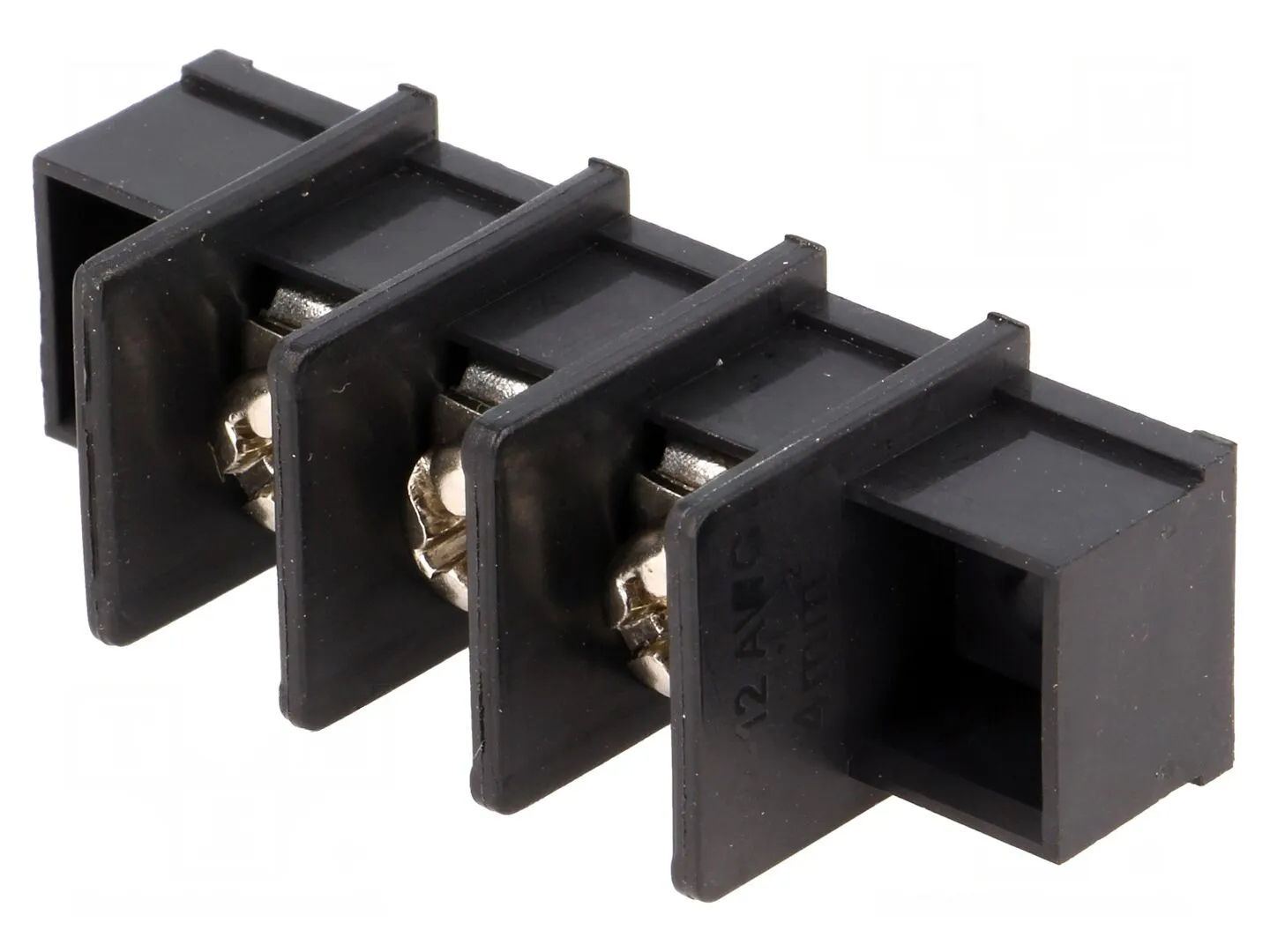

DG45C-A-03P-13-00A(H)
| Manufacturer | |
| Mfr. Part # | DG45C-A-03P-13-00A(H) |
| EBEE Part # | 12371027-DG45C-A-03P-13-00A(H)-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | Connector: PCB terminal block; terminal; 32A; 750V; straight; 1x3 |
This materials supports customized cables!
Learn more >>600 In Stock for Fast Shipping
600 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: pcsFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.0100 | $ 1.0100 |
| 20+ | $0.7900 | $ 15.8000 |
| 100+ | $0.6500 | $ 65.0000 |
| 500+ | $0.5800 | $ 290.0000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors, Interconnects ,Terminals ,Common Terminals | |
| Datasheet | DEGSON DG45C-A-03P-13-00A(H) | |
| Operating temperature | -40...105°C | |
| Rated voltage | 750V | |
| Conform to the norm | CE | |
| Conform to the norm | UL | |
| Conform to the norm | VDE | |
| Type of connector | PCB terminal block | |
| Connector | terminal | |
| Spatial orientation | straight | |
| Electrical mounting | screw terminal | |
| Electrical mounting | THT | |
| Contacts pitch | 9.5mm | |
| Connector pinout layout | 1x3 | |
| Contact plating | tinned | |
| Mechanical mounting | for panel mounting | |
| Mechanical mounting | mounting holes | |
| Mechanical mounting | on PCBs | |
| Current rating | 32A | |
| Colour | black | |
| Body material | polyamide 66 | |
| Flammability rating | UL94V-0 | |
| Height | 18.4mm | |
| Contact material | brass | |
| Wire cross-section | 4mm<sup>2</sup> | |
| Number of ways | 3 | |
| Wire size | 22AWG...12AWG | |
| Depth | 16.3mm |
Description
Connector: PCB terminal block; terminal; 32A; 750V; straight; 1x3
