DG332K-5.0-03P-12-00A(H)
| Manufacturer | |
| Mfr. Part # | DG332K-5.0-03P-12-00A(H) |
| EBEE Part # | 12371868-DG332K-5.0-03P-12-00A(H)-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |

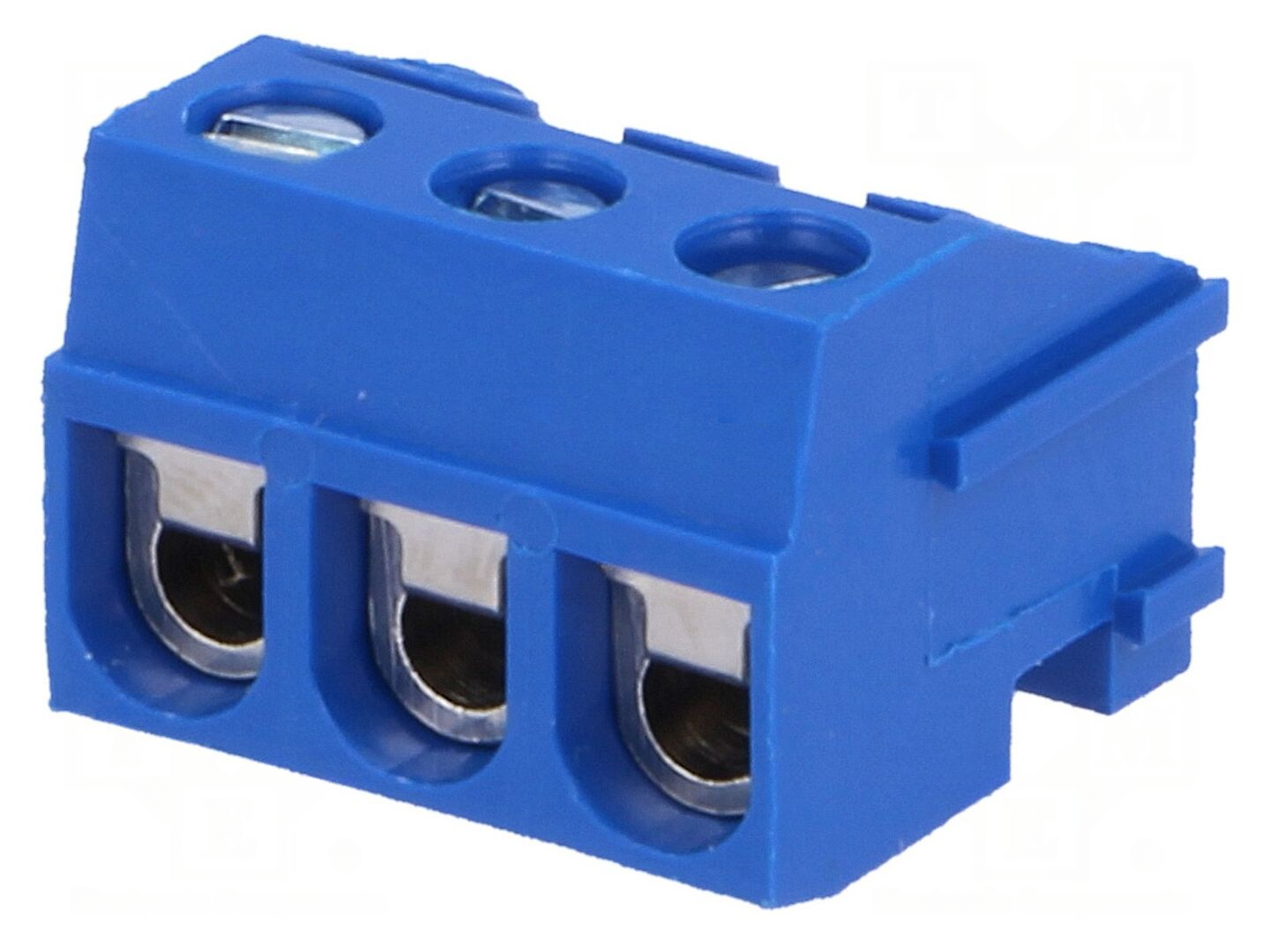

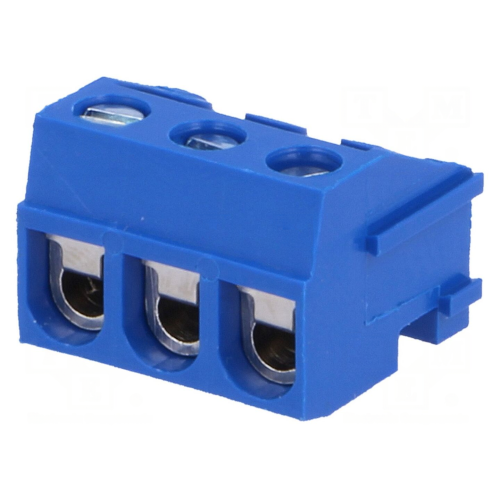

| Description | Connector: pluggable terminal block; plug; female; 10A; 300V; blue |
This materials supports customized cables!
Learn more >>19172 In Stock for Fast Shipping
19172 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: pcsFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 2+ | $0.4630 | $ 0.9260 |
| 20+ | $0.3870 | $ 7.7400 |
| 100+ | $0.3400 | $ 34.0000 |
| 400+ | $0.3090 | $ 123.6000 |
| 1200+ | $0.2780 | $ 333.6000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Terminals | |
| Datasheet | DEGSON DG332K-5.0-03P-12-00A(H) | |
| Operating temperature | -30...120°C | |
| Rated voltage | 300V | |
| Conform to the norm | CE | |
| Conform to the norm | UL | |
| Type of connector | pluggable terminal block | |
| Connector | plug | |
| Kind of connector | female | |
| Spatial orientation | angled 90° | |
| Electrical mounting | pin header | |
| Electrical mounting | screw terminal | |
| Contacts pitch | 5mm | |
| Connector pinout layout | 1x3 | |
| Contact plating | tinned | |
| Mechanical mounting | for cable | |
| Current rating | 10A | |
| Locking system | friction lock | |
| Colour | blue | |
| Connector variant | with wire protector | |
| Body material | PBT | |
| Flammability rating | UL94V-0 | |
| Height | 11mm | |
| Contact material | brass | |
| Wire cross-section | 1.5mm<sup>2</sup> | |
| Number of ways | 3 | |
| Wire size | 28AWG...16AWG | |
| Depth | 13.4mm | |
| Connectors features | assembling possibility | |
| Number of terminals | 3 |
Description
Connector: pluggable terminal block; plug; female; 10A; 300V; blue
