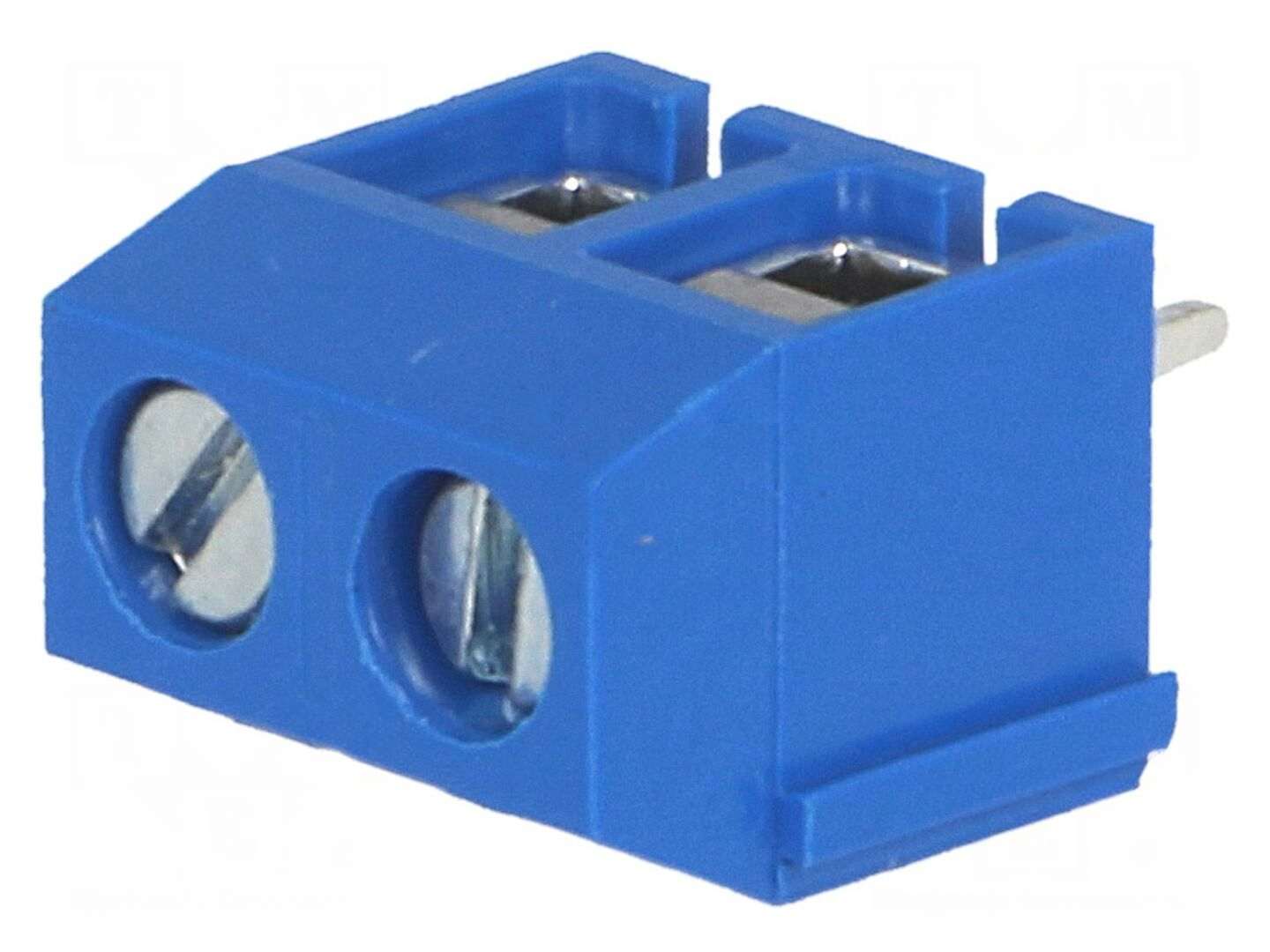

DG306-5.0-02P-12-00A(H)
| Manufacturer | |
| Mfr. Part # | DG306-5.0-02P-12-00A(H) |
| EBEE Part # | 12371862-DG306-5.0-02P-12-00A(H)-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | Connector: PCB terminal block; terminal; 15A; 300V; angled 90° |
This materials supports customized cables!
Learn more >>21618 In Stock for Fast Shipping
21618 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: pcsFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 5+ | $0.1830 | $ 0.9150 |
| 20+ | $0.1510 | $ 3.0200 |
| 100+ | $0.1340 | $ 13.4000 |
| 500+ | $0.1220 | $ 61.0000 |
| 2000+ | $0.1100 | $ 220.0000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Terminals | |
| Datasheet | DEGSON DG306-5.0-02P-12-00A(H) | |
| Operating temperature | -30...120°C | |
| Rated voltage | 300V | |
| Conform to the norm | CE | |
| Conform to the norm | UL | |
| Conform to the norm | VDE | |
| Type of connector | PCB terminal block | |
| Connector | terminal | |
| Spatial orientation | angled 90° | |
| Electrical mounting | screw terminal | |
| Electrical mounting | THT | |
| Contacts pitch | 5mm | |
| Connector pinout layout | 1x2 | |
| Contact plating | tinned | |
| Mechanical mounting | on PCBs | |
| Current rating | 15A | |
| Colour | blue | |
| Connector variant | with wire protector | |
| Body material | PBT | |
| Flammability rating | UL94V-0 | |
| Height | 10mm | |
| Contact material | brass | |
| Wire cross-section | 1.5mm<sup>2</sup> | |
| Number of ways | 2 | |
| Length | 10mm | |
| Wire size | 22AWG...14AWG | |
| Depth | 7.6mm | |
| Connectors features | assembling possibility |
Description
Connector: PCB terminal block; terminal; 15A; 300V; angled 90°
