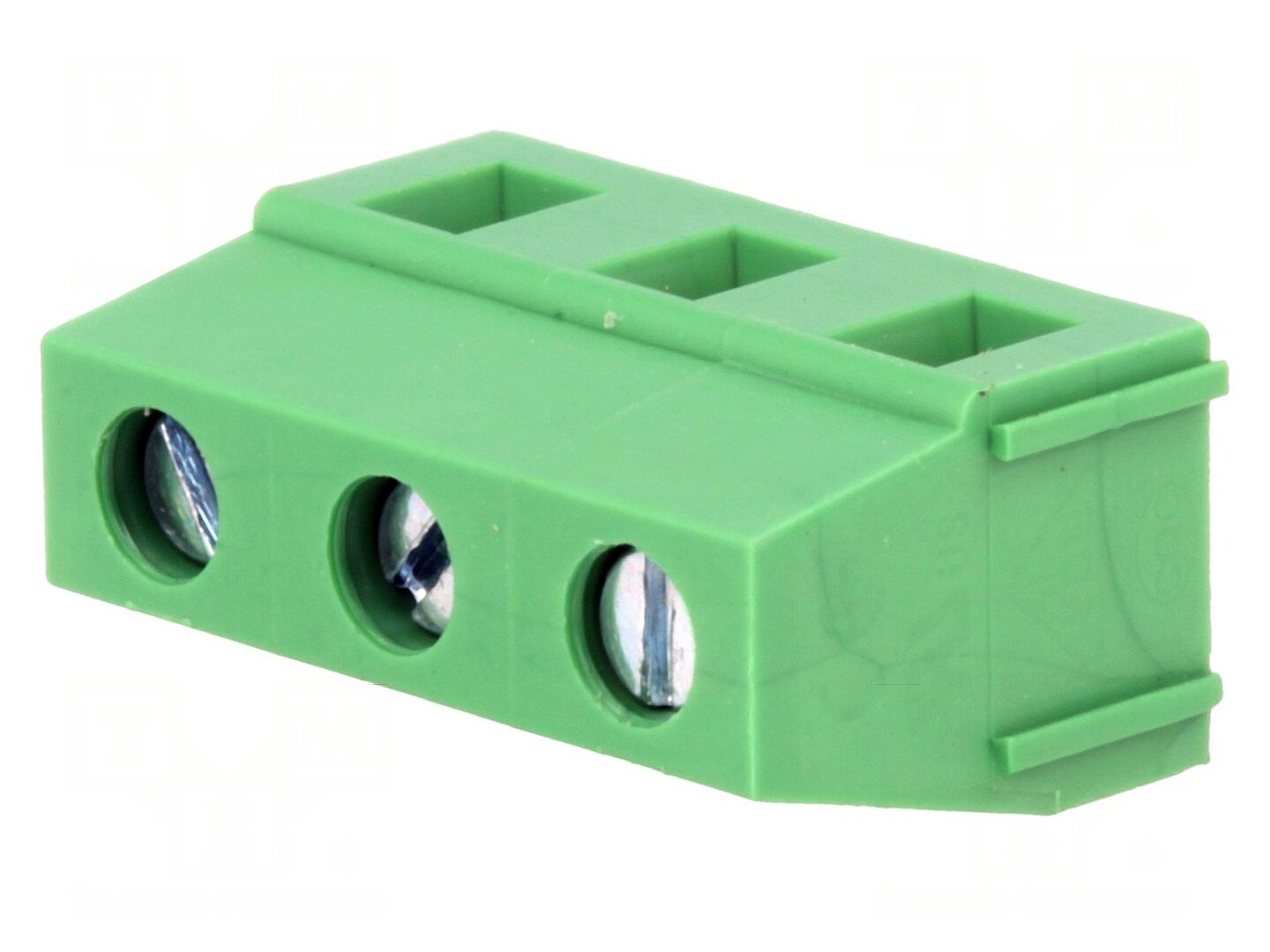

DG128-7.5-03P-14-00A(H)
| Manufacturer | |
| Mfr. Part # | DG128-7.5-03P-14-00A(H) |
| EBEE Part # | 12372108-DG128-7.5-03P-14-00A(H)-EB |
| Customer # | |
| Datasheet | |
| Description | Connector: PCB terminal block; terminal; 18A; 450V; angled; tinned |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Terminals | |
| Datasheet | DEGSON DG128-7.5-03P-14-00A(H) | |
| Operating temperature | -40...105°C | |
| Rated voltage | 450V | |
| Conform to the norm | CE | |
| Conform to the norm | UL | |
| Conform to the norm | VDE | |
| Type of connector | PCB terminal block | |
| Connector | terminal | |
| Spatial orientation | angled | |
| Electrical mounting | cage clamp | |
| Electrical mounting | screw terminal | |
| Electrical mounting | THT | |
| Contacts pitch | 7.5mm | |
| Connector pinout layout | 1x3 | |
| Contact plating | tinned | |
| Mechanical mounting | on PCBs | |
| Current rating | 18A | |
| Colour | green | |
| Body material | polyamide 66 | |
| Flammability rating | UL94V-0 | |
| Height | 14.1mm | |
| Contact material | brass | |
| Wire cross-section | 2.5mm<sup>2</sup> | |
| Number of ways | 3 | |
| Length | 22.5mm | |
| Wire size | 24AWG...12AWG | |
| Depth | 10.2mm | |
| Connectors features | assembling possibility |
