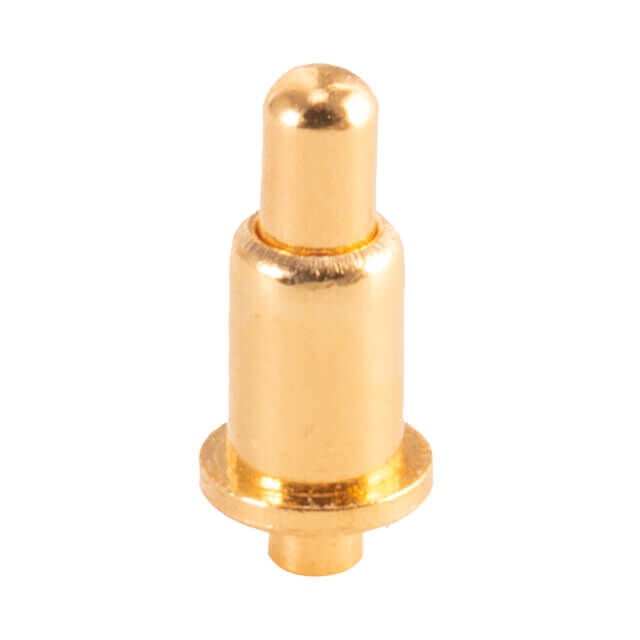

Images are for reference only
Add to Favourites
CPG-46-TH-TR
| Manufacturer | |
| Mfr. Part # | CPG-46-TH-TR |
| EBEE Part # | 7622210-CPG-46-TH-TR-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | 70 GF INITIAL OPERATING FORCE, 1 |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.7400 | $ 0.7400 |
| 10+ | $0.5990 | $ 5.9900 |
| 25+ | $0.5524 | $ 13.8100 |
| 50+ | $0.5194 | $ 25.9700 |
| 100+ | $0.4884 | $ 48.8400 |
| 250+ | $0.4502 | $ 112.5500 |
| 500+ | $0.4234 | $ 211.7000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Industrial control electrical ,Contact regulators | |
| Datasheet | Same Sky (Formerly CUI Devices) CPG-46-TH-TR | |
| Series | CPG | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Contact Type | Sleeve & Plunger (Pogo Pins) | |
| Mounting Type | Through Hole | |
| Operating Temperature | -40°C ~ 85°C | |
| Material Flammability Rating | - | |
| Features | - | |
| Contact Material | Brass | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10.0µin (0.25µm) | |
| Maximum Working Height | 0.157" (3.99mm) | |
| Recommended Working Height | 0.126" (3.20mm) | |
| Minimum Working Height | 0.122" (3.10mm) | |
| Pad Layout Dimension | Circular - 0.079" (2.00mm) (TH) | |
| Operating Force - Initial | 70gf | |
| Operating Force - Mid Compression | 100gf | |
| Plunger Size | 0.039" (1.00mm) Dia | |
| Mating Cycles | 10000 | |
| Current Rating (Amps) | 1A |
Description
Contact Spring Through Hole
