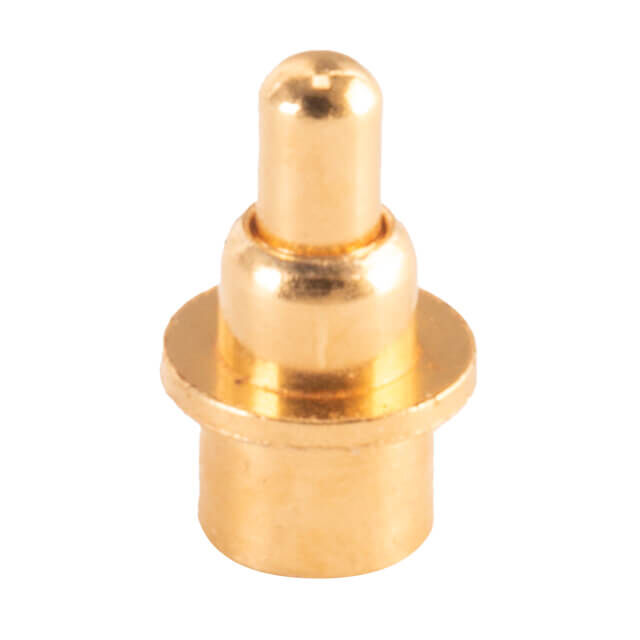

CPG-37-TH-TR
| Manufacturer | |
| Mfr. Part # | CPG-37-TH-TR |
| EBEE Part # | 7622225-CPG-37-TH-TR-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | 28 GF INITIAL OPERATING FORCE, 3 |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.8000 | $ 0.8000 |
| 10+ | $0.6540 | $ 6.5400 |
| 25+ | $0.6028 | $ 15.0700 |
| 50+ | $0.5666 | $ 28.3300 |
| 100+ | $0.5328 | $ 53.2800 |
| 250+ | $0.4912 | $ 122.8000 |
| 500+ | $0.4619 | $ 230.9500 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Industrial control electrical ,Contact regulators | |
| Datasheet | Same Sky (Formerly CUI Devices) CPG-37-TH-TR | |
| Series | CPG | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Contact Type | Sleeve & Plunger (Pogo Pins) | |
| Mounting Type | Through Hole | |
| Operating Temperature | -40°C ~ 85°C | |
| Material Flammability Rating | UL94 V-0 | |
| Features | - | |
| Contact Material | Brass | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 5.1µin (0.13µm) | |
| Maximum Working Height | 0.087" (2.20mm) | |
| Recommended Working Height | 0.059" (1.50mm) | |
| Minimum Working Height | 0.051" (1.30mm) | |
| Pad Layout Dimension | Circular - 0.079" (2.00mm) (TH) | |
| Operating Force - Initial | 28gf | |
| Operating Force - Mid Compression | 30gf | |
| Plunger Size | 0.031" (0.80mm) Dia | |
| Mating Cycles | 20000 | |
| Current Rating (Amps) | 1A |
Description
Contact Spring Through Hole
