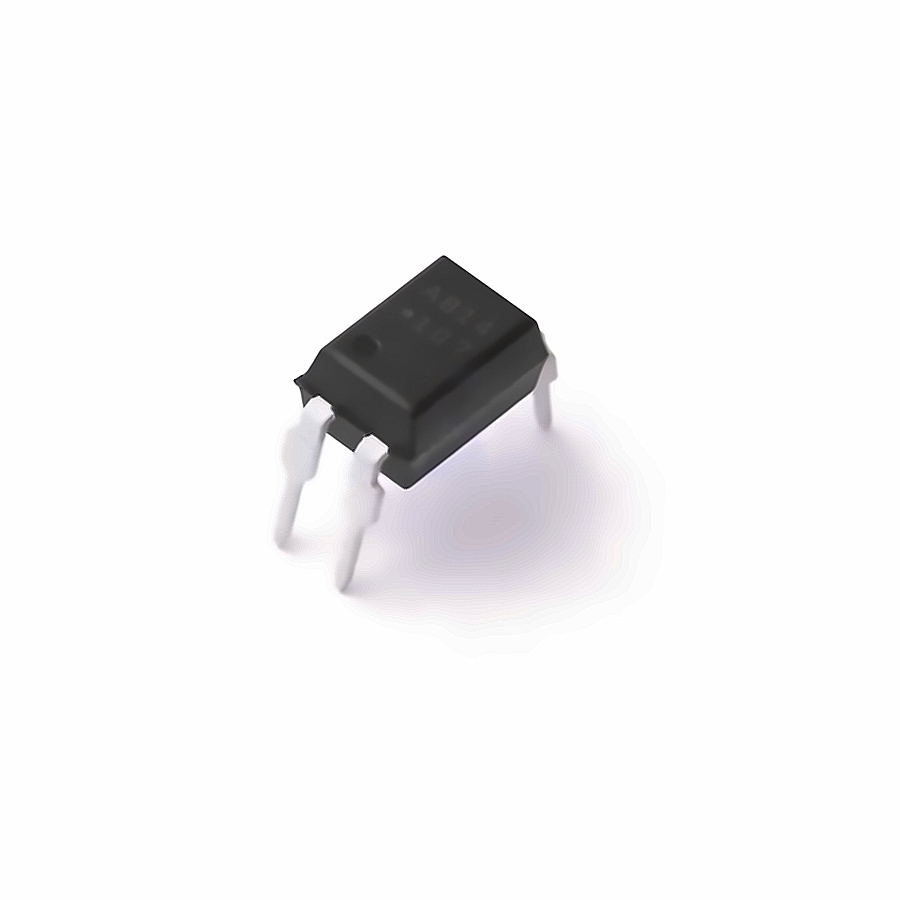

Images are for reference only
Add to Favourites
Broadcom Limited HCPL-814-000E
| Manufacturer | |
| Mfr. Part # | HCPL-814-000E |
| EBEE Part # | E83018547 |
| Package | DIP-4 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 5kV 50mA 1 1.2V DIP-4 Transistor, Photovoltaic Output Optoisolators ROHS |
This materials supports customized cables!
Learn more >>44 In Stock for Fast Shipping
44 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.3503 | $ 0.3503 |
| 10+ | $0.3425 | $ 3.4250 |
| 30+ | $0.3379 | $ 10.1370 |
| 100+ | $0.3316 | $ 33.1600 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Optoisolators ,Transistor, Photovoltaic Output Optoisolators | |
| Datasheet | Broadcom Limited HCPL-814-000E | |
| RoHS | ||
| Output Type | Phototransistor | |
| Operating Temperature | -30℃~+100℃ | |
| Output Current | 50mA | |
| Number of Channels | - | |
| Input Type | AC,DC | |
| Rise Time | 4us | |
| Fall Time | 3us | |
| Reverse Voltage | - | |
| Load Voltage | 35V | |
| Isolation Voltage(Vrms) | 5kV | |
| Pd - Power Dissipation | 200mW | |
| Voltage - Forward(Vf) | 1.2V | |
| Vce Saturation(VCE(sat)) | 100mV@20mA,1mA | |
| Current transfer ratio | 20%;300% | |
| Forward Current(If) | 50mA |
