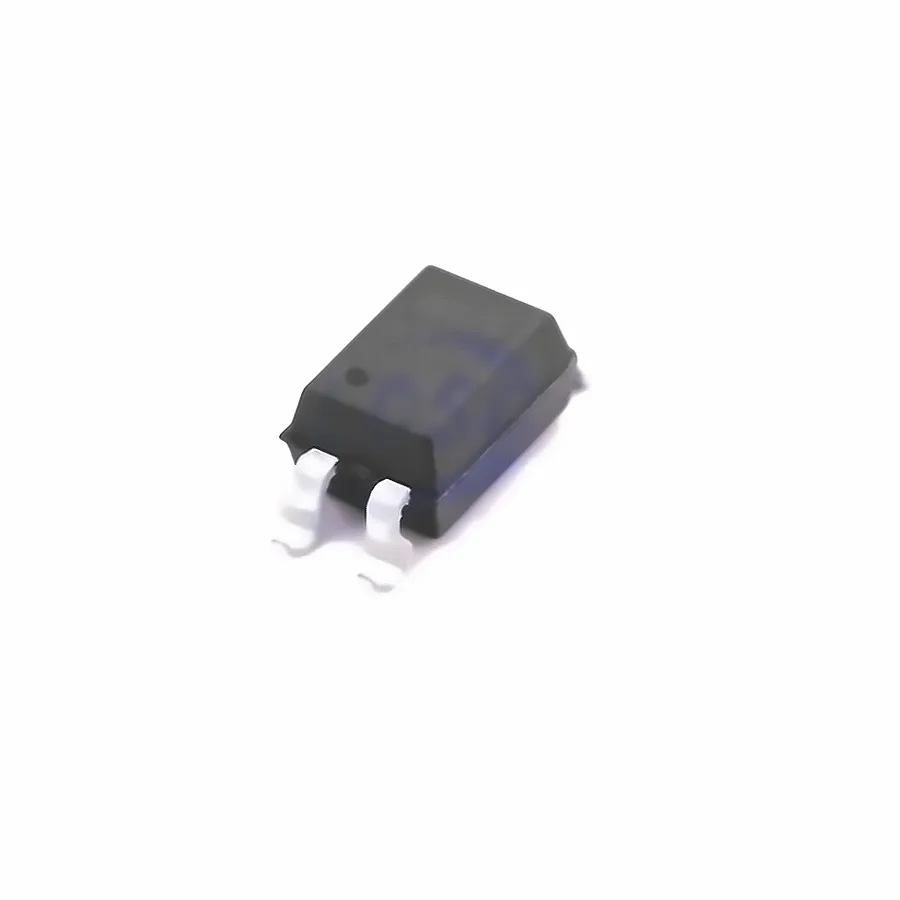

Images are for reference only
Add to Favourites
Broadcom/AVAGO HCPL-817-56BE
| Manufacturer | |
| Mfr. Part # | HCPL-817-56BE |
| EBEE Part # | E840666 |
| Package | SMD-4P |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 70V 5kV 50mA 100mV@1mA,20mA 1 6V 1.2V DC SMD-4P Transistor, Photovoltaic Output Optoisolators ROHS |
This materials supports customized cables!
Learn more >>6980 In Stock for Fast Shipping
6980 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 5+ | $0.3931 | $ 1.9655 |
| 50+ | $0.3140 | $ 15.7000 |
| 150+ | $0.2802 | $ 42.0300 |
| 1000+ | $0.2212 | $ 221.2000 |
| 2000+ | $0.2024 | $ 404.8000 |
| 5000+ | $0.1911 | $ 955.5000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Optoisolators ,Transistor, Photovoltaic Output Optoisolators | |
| Datasheet | Broadcom/AVAGO HCPL-817-56BE | |
| RoHS | ||
| Output Type | Phototransistor | |
| Operating Temperature | -30℃~+100℃ | |
| Output Current | 50mA | |
| Number of Channels | 1 | |
| Input Type | DC | |
| Rise Time | 4us@2mA,100Ω | |
| Fall Time | 3us | |
| Reverse Voltage | 6V | |
| Load Voltage | 70V | |
| Isolation Voltage(Vrms) | 5kV | |
| Voltage - Forward(Vf) | 1.2V | |
| Vce Saturation(VCE(sat)) | 100mV@1mA,20mA | |
| Current transfer ratio | 600%;50% | |
| Forward Current(If) | 50mA |
