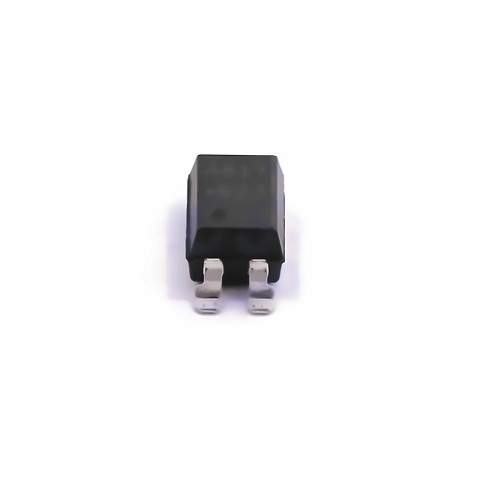

Broadcom/AVAGO HCPL-817-500E
| Manufacturer | |
| Mfr. Part # | HCPL-817-500E |
| EBEE Part # | E8188750 |
| Package | SMD-4P |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 70V 5kV 50mA 100mV@1mA,20mA 1 6V 1.2V DC SMD-4P Transistor, Photovoltaic Output Optoisolators ROHS |
This materials supports customized cables!
Learn more >>1195 In Stock for Fast Shipping
1195 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 5+ | $0.2843 | $ 1.4215 |
| 50+ | $0.2210 | $ 11.0500 |
| 150+ | $0.1939 | $ 29.0850 |
| 1000+ | $0.1600 | $ 160.0000 |
| 2000+ | $0.1449 | $ 289.8000 |
| 5000+ | $0.1359 | $ 679.5000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Optoisolators ,Transistor, Photovoltaic Output Optoisolators | |
| Datasheet | Broadcom/AVAGO HCPL-817-500E | |
| RoHS | ||
| Output Type | Phototransistor | |
| Operating Temperature | -30℃~+100℃ | |
| Output Current | 50mA | |
| Number of Channels | 1 | |
| Input Type | DC | |
| Rise Time | 4us@2mA,100Ω | |
| Fall Time | 3us | |
| Reverse Voltage | 6V | |
| Load Voltage | 70V | |
| Isolation Voltage(Vrms) | 5kV | |
| Voltage - Forward(Vf) | 1.2V | |
| Vce Saturation(VCE(sat)) | 100mV@1mA,20mA | |
| Current transfer ratio | 600%;50% | |
| Forward Current(If) | 50mA |
