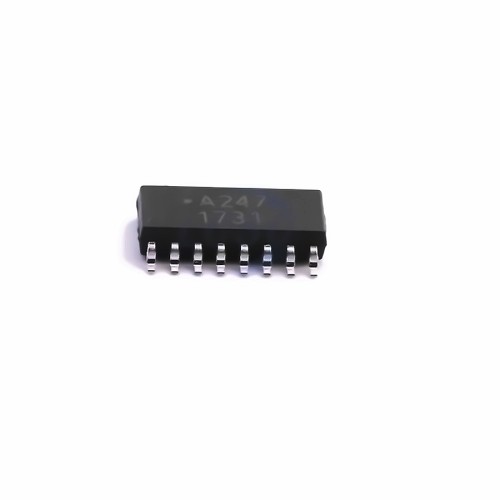

Broadcom/AVAGO ACPL-247-500E
| Manufacturer | |
| Mfr. Part # | ACPL-247-500E |
| EBEE Part # | E8188681 |
| Package | SOP-16-4.4mm |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 80V 50mA [email protected],8mA 4 6V 1.2V DC SOP-16-4.4mm Transistor, Photovoltaic Output Optoisolators ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.0582 | $ 1.0582 |
| 10+ | $0.8866 | $ 8.8660 |
| 30+ | $0.7928 | $ 23.7840 |
| 100+ | $0.5752 | $ 57.5200 |
| 500+ | $0.5275 | $ 263.7500 |
| 1000+ | $0.5069 | $ 506.9000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Optoisolators ,Transistor, Photovoltaic Output Optoisolators | |
| Datasheet | Broadcom/AVAGO ACPL-247-500E | |
| RoHS | ||
| Output Type | Phototransistor | |
| Operating Temperature | -55℃~+110℃ | |
| Output Current | 50mA | |
| Number of Channels | 4 | |
| Input Type | DC | |
| Rise Time | 2us | |
| Fall Time | 3us | |
| Reverse Voltage | 6V | |
| Load Voltage | 80V | |
| Isolation Voltage(Vrms) | 3.75kV | |
| Pd - Power Dissipation | 170mW | |
| Voltage - Forward(Vf) | 1.2V | |
| Vce Saturation(VCE(sat)) | 400mV@8mA,2.4mA | |
| Current transfer ratio | 600%;100% | |
| Forward Current(If) | 50mA |
