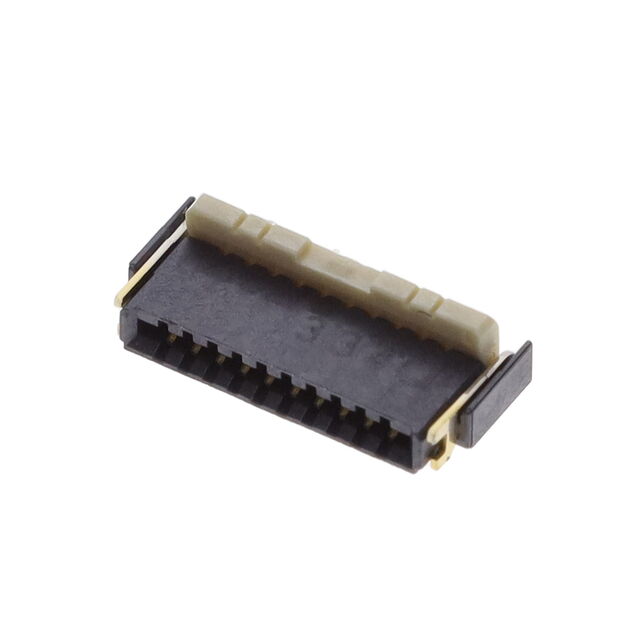

Images are for reference only
Add to Favourites
AYF531035
| Manufacturer | |
| Mfr. Part # | AYF531035 |
| EBEE Part # | 9773396-AYF531035-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | CONN FFC FPC 10POS 0.5MM R/A |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.8600 | $ 0.8600 |
| 10+ | $0.7300 | $ 7.3000 |
| 25+ | $0.6840 | $ 17.1000 |
| 50+ | $0.6514 | $ 32.5700 |
| 100+ | $0.6202 | $ 62.0200 |
| 250+ | $0.5813 | $ 145.3250 |
| 500+ | $0.5535 | $ 276.7500 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,FFC, FPC (Flat Flexible) Connector Assemblies | |
| Datasheet | Panasonic Electric Works AYF531035 | |
| Series | Y5B | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Number of Positions | 10 | |
| Mounting Type | Surface Mount, Right Angle | |
| Operating Temperature | -55°C ~ 85°C | |
| Housing Color | - | |
| Material Flammability Rating | UL94 V-0 | |
| Features | - | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Mating Cycles | 20 | |
| Current Rating (Amps) | 0.5A per Contact | |
| Termination | Solder | |
| Pitch | 0.020" (0.50mm) | |
| Flat Flex Type | FFC, FPC | |
| FFC, FCB Thickness | 0.30mm | |
| Locking Feature | Flip Lock, Backlock | |
| Voltage Rating | 50V | |
| Housing Material | Liquid Crystal Polymer (LCP) | |
| Connector/Contact Type | Contacts, Top and Bottom | |
| Height Above Board | 0.039" (1.00mm) | |
| Cable End Type | Tapered | |
| Actuator Material | Liquid Crystal Polymer (LCP) | |
| Actuator Color | - |
Description
10 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
