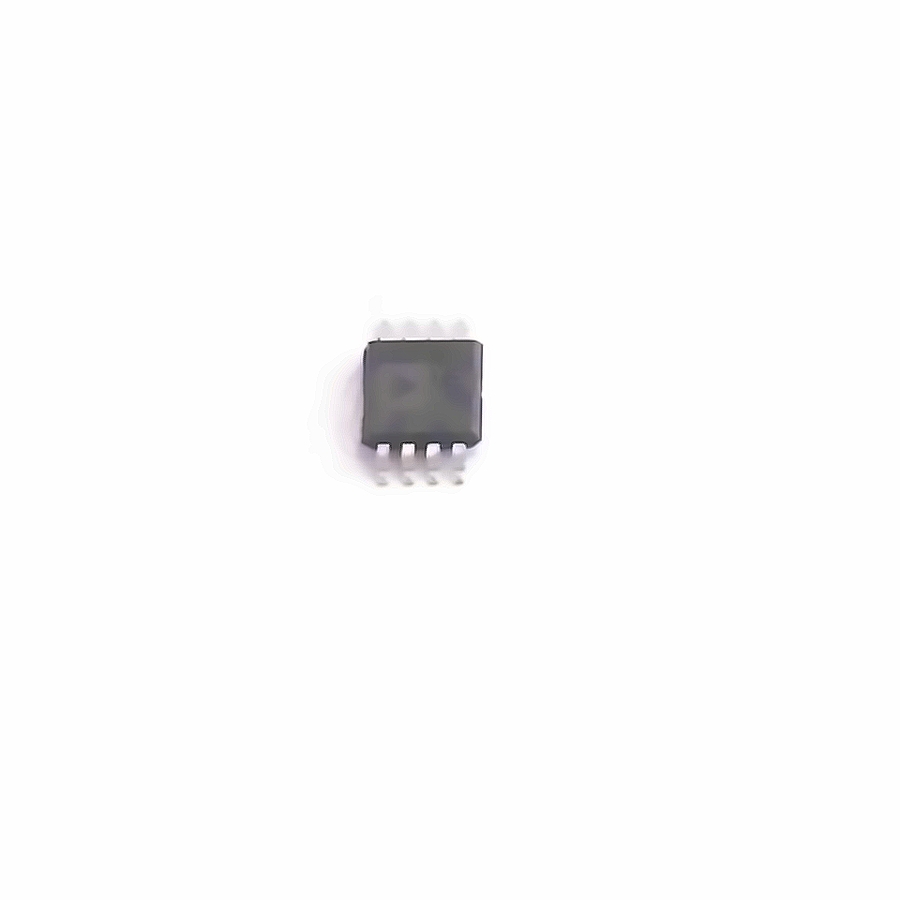

Analog Devices AD8420ARMZ-RL
| Manufacturer | |
| Mfr. Part # | AD8420ARMZ-RL |
| EBEE Part # | E8652810 |
| Package | MSOP-8 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 20nA 250uV 250kHz Single channel MSOP-8 Instrumentation Amplifiers ROHS |
This materials supports customized cables!
Learn more >>10 In Stock for Fast Shipping
10 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.9087 | $ 2.9087 |
| 10+ | $2.5086 | $ 25.0860 |
| 30+ | $2.2593 | $ 67.7790 |
| 100+ | $2.0037 | $ 200.3700 |
| 500+ | $1.8878 | $ 943.9000 |
| 1000+ | $1.8370 | $ 1837.0000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Amplifiers/Comparators ,Instrumentation Amplifiers | |
| Datasheet | Analog Devices AD8420ARMZ-RL | |
| RoHS | ||
| Output Type | - | |
| Operating Temperature | -40℃~+85℃ | |
| Rail to Rail | Rail-to-Rail Output | |
| Quiescent Current | 80uA | |
| Noise density(eN) | 55nV/√Hz@1kHz | |
| Output Current | 10mA | |
| Maximum Power Supply Range (Vdd-Vss) | 36V | |
| Input Offset Current(Ios) | 1nA | |
| Number of Channels | 1 | |
| Voltage - Supply | -18V~-2.7V;2.7V~18V | |
| Settling Time | 3us | |
| Power Supply Rejection Ratio (PSRR) | 86dB | |
| Vos - Input Offset Voltage | 125uV | |
| Ib - Input Bias Current | 20nA | |
| Common Mode Rejection Ratio(CMRR) | 100dB | |
| Gain Bandwidth Product | 250kHz | |
| Slew Rate | 1V/us | |
| Input offset current drift(Ios TC) | 0.5pA/℃ | |
| Input Offset Voltage Drift(Vos TC) | 1uV/℃ | |
| Single Supply | 2.7V~36V |
