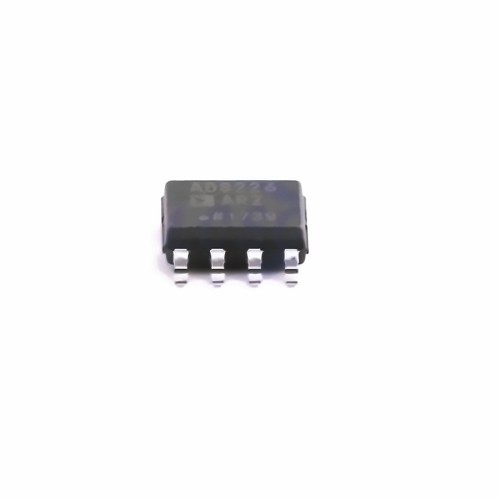

Images are for reference only
Add to Favourites
Analog Devices AD8226ARZ-R7
| Manufacturer | |
| Mfr. Part # | AD8226ARZ-R7 |
| EBEE Part # | E834250 |
| Package | SOIC-8 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 20nA 100uV 1500kHz 86dB Single channel Rail-to-Rail Output SOIC-8 Instrumentation Amplifiers ROHS |
This materials supports customized cables!
Learn more >>5361 In Stock for Fast Shipping
5361 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.5885 | $ 2.5885 |
| 10+ | $2.2071 | $ 22.0710 |
| 30+ | $1.9694 | $ 59.0820 |
| 100+ | $1.7252 | $ 172.5200 |
| 500+ | $1.6151 | $ 807.5500 |
| 1000+ | $1.5672 | $ 1567.2000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Amplifiers/Comparators ,Instrumentation Amplifiers | |
| Datasheet | Analog Devices AD8226ARZ-R7 | |
| RoHS | ||
| Output Type | - | |
| Operating Temperature | -40℃~+125℃ | |
| Rail to Rail | Rail-to-Rail Output | |
| Quiescent Current | 350uA | |
| Noise density(eN) | 22nV/√Hz@1kHz | |
| Output Current | 13mA | |
| Maximum Power Supply Range (Vdd-Vss) | 36V | |
| Input Offset Current(Ios) | 1nA | |
| Number of Channels | 1 | |
| Voltage - Supply | -18V~-1.35V;1.35V~18V | |
| Settling Time | 25us | |
| Power Supply Rejection Ratio (PSRR) | 100dB | |
| Vos - Input Offset Voltage | 100uV | |
| Ib - Input Bias Current | 20nA | |
| Common Mode Rejection Ratio(CMRR) | 86dB | |
| Gain Bandwidth Product | 1.5MHz | |
| Slew Rate | 0.4V/us | |
| Input offset current drift(Ios TC) | 5pA/℃ | |
| Input Offset Voltage Drift(Vos TC) | 500nV/℃ | |
| Single Supply | 2.2V~36V |
