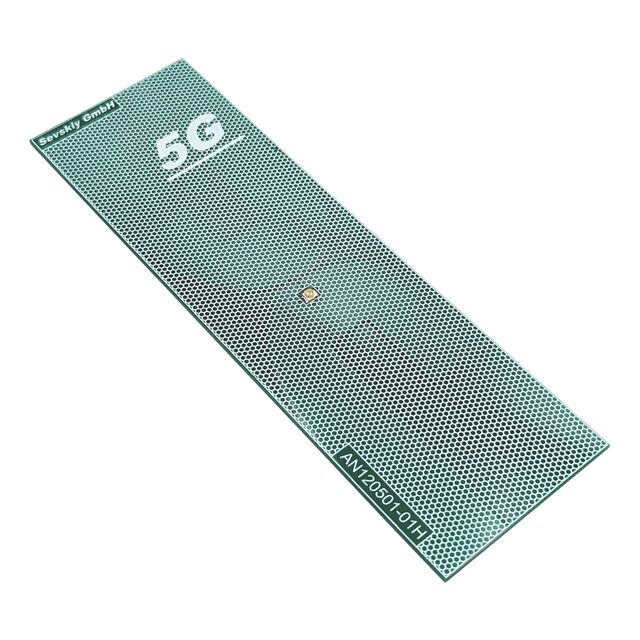

AN120501-01H
| Manufacturer | |
| Mfr. Part # | AN120501-01H |
| EBEE Part # | 12297134-AN120501-01H-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | RF ANT 5G WLAN 2.4/5/6 PCB U.FL. |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $5.5900 | $ 5.5900 |
| 10+ | $5.3770 | $ 53.7700 |
| 50+ | $5.1726 | $ 258.6300 |
| 100+ | $4.9760 | $ 497.6000 |
| 500+ | $4.7869 | $ 2393.4500 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | RF and Wireless ,Antennas | |
| Datasheet | Sevskiy GmbH AN120501-01H | |
| Series | AN120501 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Mounting Type | Bracket Mount | |
| Ingress Protection | - | |
| Features | Cable - 180mm | |
| Applications | 3G, 4G, 5G, Bluetooth, IoT, ISM, Smart Meters, UWB, WiFi | |
| Termination | U.FL (UMCC), I-PEX MHF1 | |
| Height (Max) | 0.031" (0.80mm) | |
| Return Loss | -8dB, -10dB | |
| Frequency Range | 700MHz ~ 960MHz, 1.427GHz ~ 7.125GHz | |
| Gain | 2.1dBi, 2.9dBi | |
| RF Family/Standard | UWB | |
| Frequency Group | Ultra Wide Band | |
| Frequency (Center/Band) | 830MHz, 4.276GHz | |
| Antenna Type | UWB Dipole | |
| Number of Bands | 2 | |
| VSWR | 1.93, 2.32 | |
| Power - Max | 10 W |
Description
RF ANTENNA 3G, 4G, 5G, Bluetooth, IoT, ISM, Smart Meters, UWB, WiFi UWB Dipole U.FL (UMCC), I-PEX MHF1 Bracket Mount
