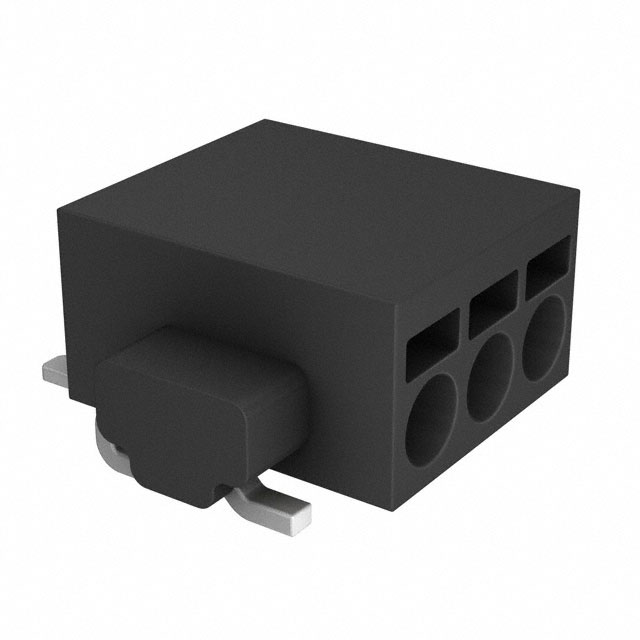

Images are for reference only
Add to Favourites
XW4L-03A1-H1
| Manufacturer | |
| Mfr. Part # | XW4L-03A1-H1 |
| EBEE Part # | 10809486-XW4L-03A1-H1-EB |
| Customer # | |
| Datasheet | |
| Description | TERM BLK 3P SIDE ENT 2.54MM SMD |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Barrier Terminal Blocks | |
| Datasheet | Omron Electronics Inc-EMC Div XW4L-03A1-H1 | |
| Series | XW4 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -45°C ~ 125°C | |
| Features | Board Guide | |
| Base Product Number | XW4L | |
| Wire Gauge | 20-26 AWG | |
| Pitch | 0.100" (2.54mm) | |
| Color | Black | |
| Housing Material | Liquid Crystal Polymer (LCP) | |
| Voltage | 160 V | |
| Current | 6 A | |
| Contact Material - Plating | Copper Alloy - Tin Plated | |
| Number of Levels | 1 | |
| Positions Per Level | 3 | |
| Torque - Screw | - | |
| Mating Orientation | Horizontal with Board | |
| Wire Termination | Screwless - Leg Spring, Push-In Spring | |
| Clamp Material - Plating | - | |
| Screw Material - Plating | - | |
| Screw Thread | - |
