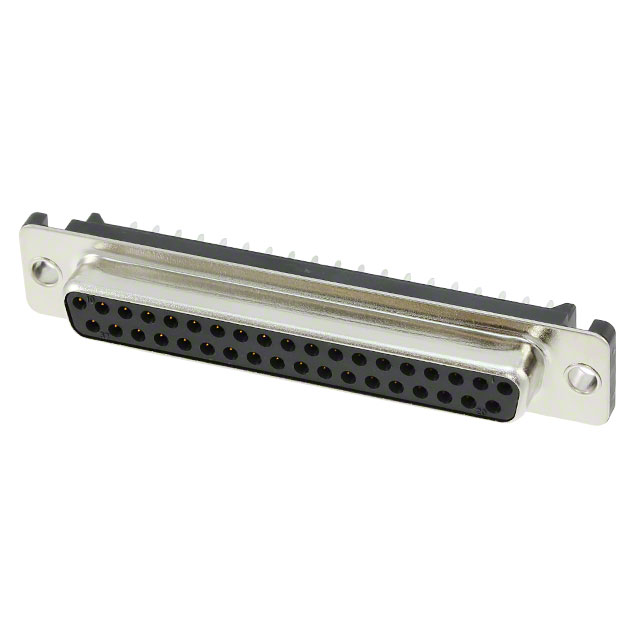

XM3F-3720
| Manufacturer | |
| Mfr. Part # | XM3F-3720 |
| EBEE Part # | 9726426-XM3F-3720-EB |
| Customer # | |
| Datasheet | |
| Description | CONN D-SUB RCPT 37POS VERT SLDR |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,D-Sub / VGA Connectors | |
| Datasheet | Omron Electronics Inc-EMC Div XM3F-3720 | |
| Series | XM3F | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 37 | |
| Contact Type | Signal | |
| Mounting Type | Through Hole | |
| Operating Temperature | -55°C ~ 105°C | |
| Ingress Protection | - | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Shielded | |
| Base Product Number | XM3F | |
| Mfr | Omron Electronics Inc-EMC Div | |
| Contact Material | Phosphor Bronze | |
| Wire Gauge | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 16.0µin (0.41µm) | |
| Current Rating (Amps) | 5A | |
| Termination | Solder | |
| Color | Black | |
| Number of Rows | 2 | |
| Voltage Rating | 300V | |
| Connector Style | D-Sub | |
| Shell Size, Connector Layout | 4 (DC, C) | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Backset Spacing | - | |
| Contact Form | - | |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
