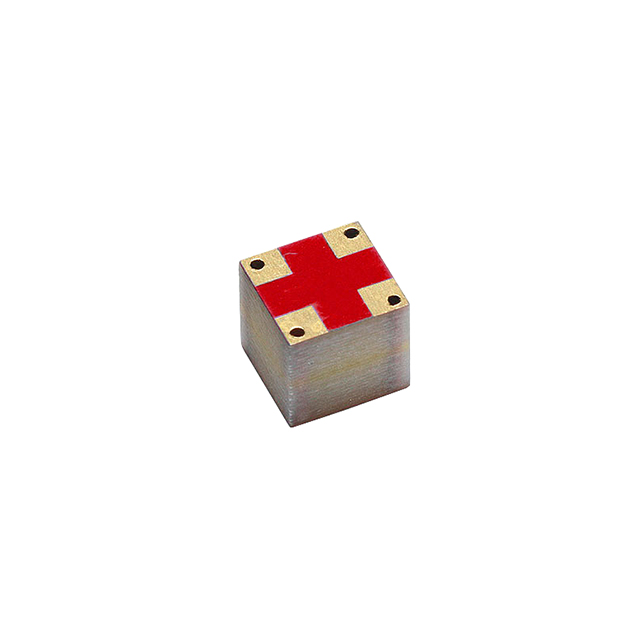

Images are for reference only
Add to Favourites
NN02-250
| Manufacturer | |
| Mfr. Part # | NN02-250 |
| EBEE Part # | 12301514-NN02-250-EB |
| Customer # | |
| Datasheet | |
| Description | CUBE MXTEND MULTIBAND ANTENNA |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | RF and Wireless ,Antennas | |
| Datasheet | Ignion NN02-250 | |
| Series | CUBE mXTEND™ | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Obsolete | |
| Mounting Type | Surface Mount | |
| Ingress Protection | - | |
| Features | - | |
| Base Product Number | NN02 | |
| Applications | DCS, GSM, LTE, PCS, UMTS | |
| Termination | Solder | |
| Height (Max) | 0.197" (5.00mm) | |
| Return Loss | - | |
| Frequency Range | 824MHz ~ 2.69GHz | |
| Gain | 0.2dBi, 1dBi, 3.3dBi | |
| RF Family/Standard | Cellular | |
| Frequency Group | Wide Band | |
| Frequency (Center/Band) | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz | |
| Antenna Type | Chip | |
| Number of Bands | 12 | |
| VSWR | 3 |
Description
RF ANTENNA DCS, GSM, LTE, PCS, UMTS Chip Solder Surface Mount
