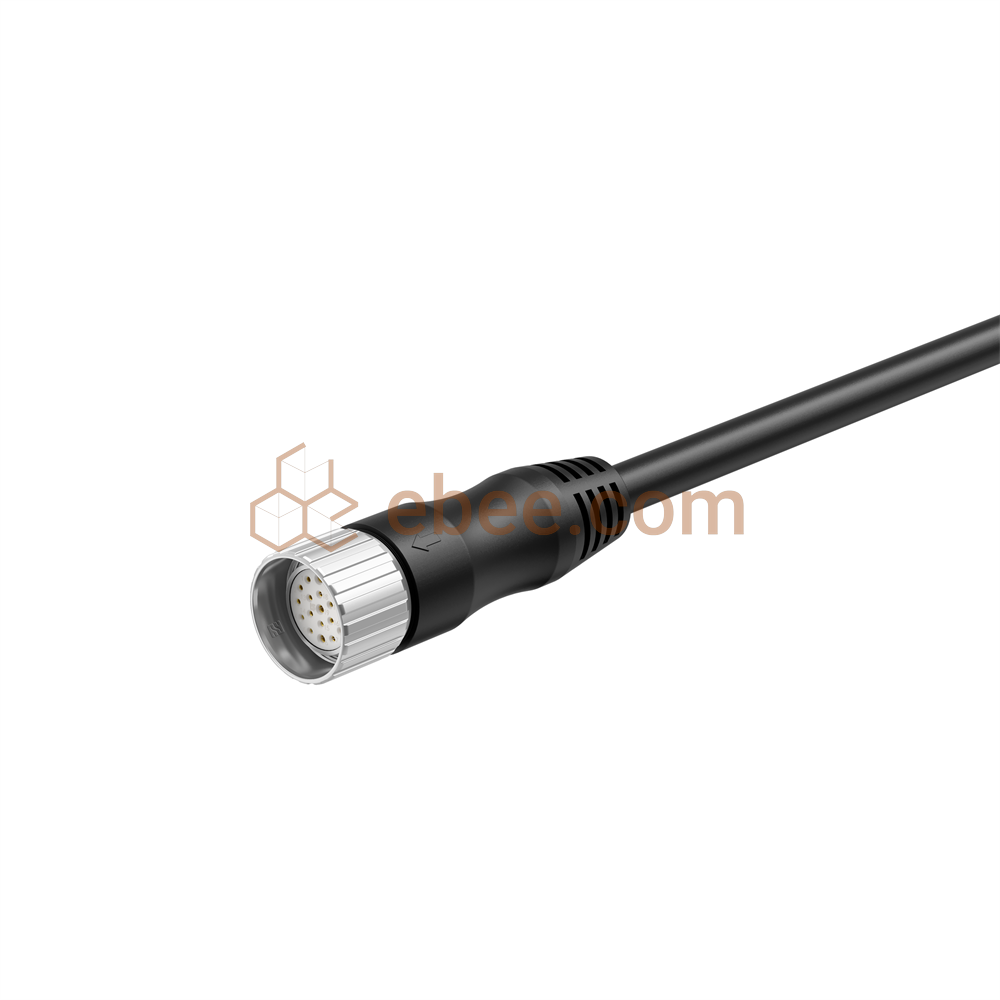

M23 19 Pin Female Signal Single-ended Cable Unshielded Straight PUR
| Manufacturer | |
| Mfr. Part # | RHT-605-10269-19-R-XXX |
| EBEE Part # | RHT-605-10269-19-R-XXX-EB |
| Customer # | |
| EDA Models | |
| Description |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: Full Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,M23 | |
| Contact Resistance | ≤3mΩ | |
| Insulation Material | PA66+GF | |
| Contact Finish | Gold | |
| Wire Gauge | 14AWG/2.5mm² | |
| Cable Material | PVC/PUR/Customized | |
| Rated Voltage | 250V | |
| Shielding | Unshielded | |
| Temperature Range | -25℃ ~ +85℃ | |
| Protection Rating | IP67（Mated） | |
| Mating Cycles | ≥500 | |
| Rated Current | 20A | |
| Overmolding Material | PVC | |
| Contact Termination | Solder Cup | |
| Seal | NBR, Black | |
| Number of Positions | 19 | |
| Cable Colour | Black/Customized | |
| Screw Nut Material | ZInc Alloy, Nickel Plated | |
| Part Type | Female | |
| Insulation Resistance | ≥100MΩ | |
| Contact Material | Brass | |
| Orientation | Straight |
