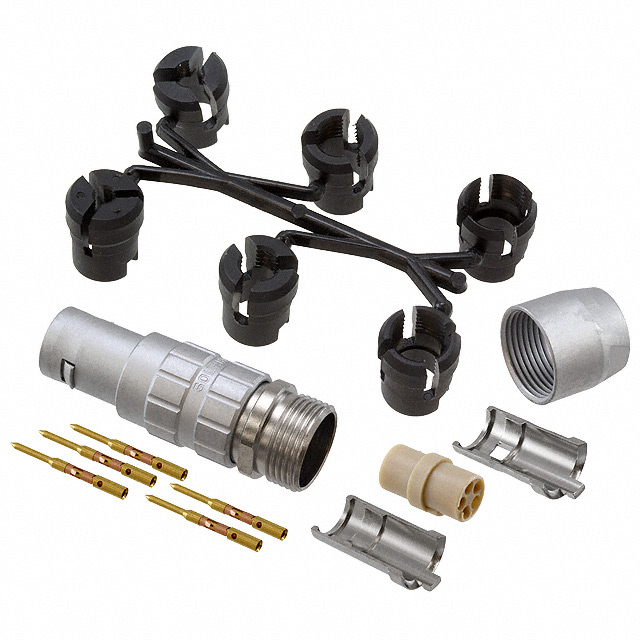

Images are for reference only
Add to Favourites
JBXFD1G05MCSDSR
| Manufacturer | |
| Mfr. Part # | JBXFD1G05MCSDSR |
| EBEE Part # | 12265962-JBXFD1G05MCSDSR-EB |
| Customer # | |
| Datasheet | |
| Description | CONN PLUG MALE 5POS GOLD CRIMP |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Circular Connectors & Cable Connectors | |
| Datasheet | Souriau-Sunbank by Eaton JBXFD1G05MCSDSR | |
| Series | JBX | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 5 | |
| Shell Size - Insert | 1 | |
| Mounting Type | Free Hanging (In-Line) | |
| Mounting Feature | - | |
| Fastening Type | Push-Pull | |
| Orientation | G | |
| Shell Material | Brass | |
| Shell Finish | Chrome over Nickel | |
| Operating Temperature | -40°C ~ 125°C | |
| Shell Size, MIL | - | |
| Ingress Protection | IP40 | |
| Shielding | Shielded | |
| Primary Material | Metal | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Backshell | |
| Insert Material | Polyetheretherketone (PEEK) | |
| Base Product Number | JBXFD1G | |
| Mfr | Souriau-Sunbank by Eaton | |
| Contact Finish - Mating | Gold | |
| Contact Material | - | |
| Applications | Industrial, Instrumentation, Medical, Telecommunications | |
| Current Rating (Amps) | 9A | |
| Termination | Crimp | |
| Color | Silver | |
| Voltage Rating | 660V | |
| Contact Finish Thickness - Mating | 19.7µin (0.50µm) | |
| Backshell Material, Plating | Brass, Chrome over Nickel | |
| Cable Opening | - |
