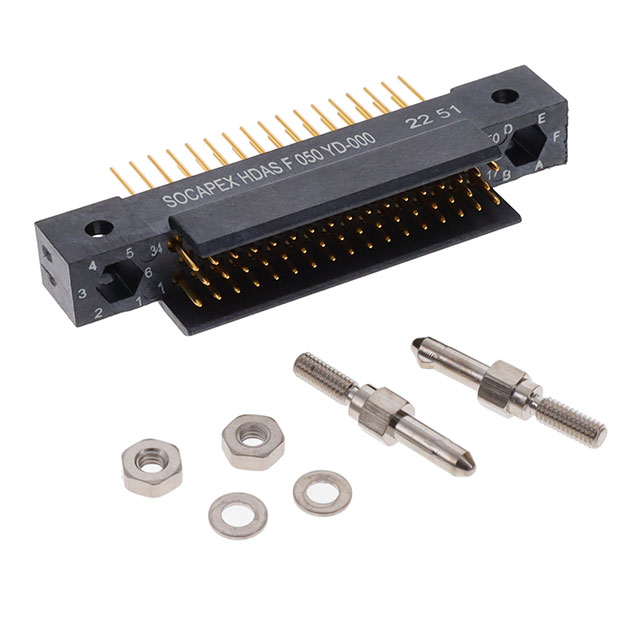

Images are for reference only
Add to Favourites
HDASF050YD-000
| Manufacturer | |
| Mfr. Part # | HDASF050YD-000 |
| EBEE Part # | 7678442-HDASF050YD-000-EB |
| Customer # | |
| Datasheet | |
| Description | HDAS PLUG 50 STRAIGHT PC TAIL CO |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Rectangular Connectors | |
| Datasheet | Amphenol Aerospace Operations HDASF050YD-000 | |
| Series | HDAS | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Header | |
| Number of Positions | 50 | |
| Contact Type | Male Pin | |
| Mounting Type | Through Hole | |
| Fastening Type | Threaded | |
| Operating Temperature | -65°C ~ 150°C | |
| Ingress Protection | - | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Mating Flange, Mounting Flange | |
| Contact Shape | Circular | |
| Mfr | Amphenol Aerospace Operations | |
| Contact Finish - Mating | Gold | |
| Contact Material | Copper Alloy | |
| Applications | - | |
| Current Rating (Amps) | 4.5A per Contact | |
| Termination | Solder | |
| Style | Board to Board or Cable | |
| Number of Rows | 3 | |
| Voltage Rating | 750V | |
| Pitch - Mating | 0.075" (1.91mm) | |
| Row Spacing - Mating | 0.075" (1.91mm) | |
| Number of Positions Loaded | All | |
| Shrouding | Shrouded - 2 Wall | |
| Contact Length - Mating | 0.264" (6.71mm) | |
| Contact Length - Post | 0.264" (6.71mm) | |
| Overall Contact Length | - | |
| Insulation Height | - | |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | |
| Contact Finish - Post | Gold | |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | |
| Insulation Color | Black | |
| Contact Finish Thickness - Post | - | |
| Mated Stacking Heights | - |
