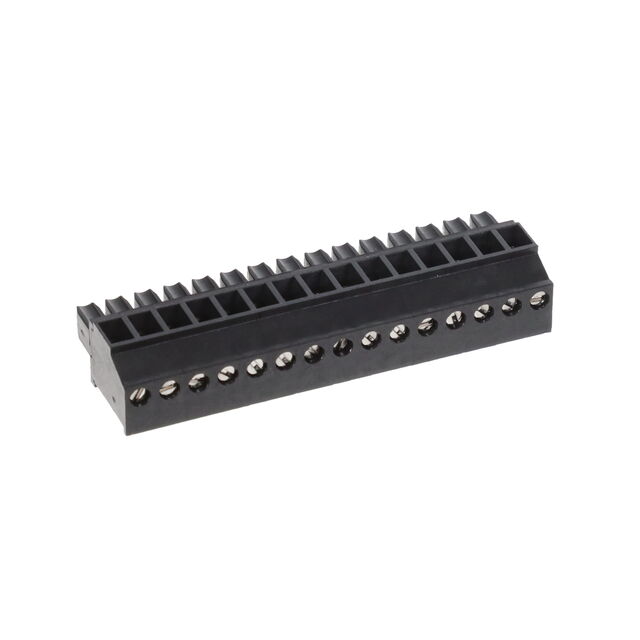

Images are for reference only
Add to Favourites
ELVT15600
| Manufacturer | |
| Mfr. Part # | ELVT15600 |
| EBEE Part # | 10771794-ELVT15600-EB |
| Customer # | |
| Datasheet | |
| Description | TERM BLOCK PLUG 15POS 3.81MM |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Barrier Terminal Blocks | |
| Datasheet | Amphenol PCD ELVT15600 | |
| Series | ELVT | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Plug, Female Sockets | |
| Number of Positions | 15 | |
| Mounting Type | Free Hanging (In-Line) | |
| Operating Temperature | 125°C | |
| Ingress Protection | - | |
| Material Flammability Rating | UL94 V-0 | |
| Features | - | |
| Base Product Number | ELVT156 | |
| Contact Material | Copper Alloy | |
| Pitch | 0.150" (3.81mm) | |
| Color | Black | |
| Housing Material | Polyamide (PA46), Nylon 4/6 | |
| Termination Style | Screw - Rising Cage Clamp | |
| Insulation Height | 0.738" (18.75mm) | |
| Screw Size | - | |
| Wire Gauge or Range - AWG | 16-28 AWG | |
| Wire Gauge or Range - mm² | - | |
| Number of Levels | 1 | |
| Current - IEC | - | |
| Voltage - UL | 300 V | |
| Current - UL | 12 A | |
| Positions Per Level | 15 | |
| Header Orientation | - | |
| Plug Wire Entry | 270° | |
| Contact Mating Finish | Tin | |
| Torque - Screw | 0.25 Nm (2.2 Lb-In) | |
| Wire Strip Length | 6.35mm | |
| Contact Tail Length | - |
