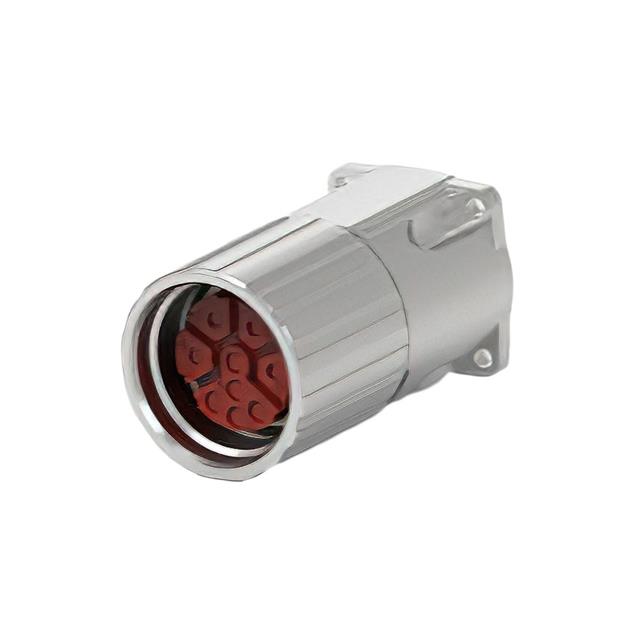

Images are for reference only
Add to Favourites
BDA109N00000050000
| Manufacturer | |
| Mfr. Part # | BDA109N00000050000 |
| EBEE Part # | 11540991-BDA109N00000050000-EB |
| Customer # | |
| Datasheet | |
| Description | CONN PLG HSG FMALE 9POS PNL MT |
This materials supports customized cables!Learn more >>
Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Circular Connectors & Cable Connectors | |
| Datasheet | TE Intercontec BDA109N00000050000 | |
| Series | 923 | |
| Packaging | Box | |
| Part Status | Active | |
| Connector Type | Plug Housing | |
| Type | For Female Sockets | |
| Number of Positions | 9 (5 + 3 Power + PE) | |
| Shell Size - Insert | - | |
| Contact Type | - | |
| Contact Size | - | |
| Mounting Type | Panel Mount | |
| Mounting Feature | Flange | |
| Fastening Type | Push-Twist | |
| Orientation | Keyed | |
| Shell Material | Zinc Die Cast | |
| Shell Finish | Nickel | |
| Note | Contacts Not Included | |
| Operating Temperature | -20°C ~ 130°C | |
| Shell Size, MIL | - | |
| Housing Color | Silver | |
| Ingress Protection | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | |
| Shielding | Unshielded | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Coupling Nut | |
| Insert Material | Polyamide (PA66), Nylon 6/6 | |
| Contact Shape | Circular | |
| Base Product Number | BDA10 | |
| Includes | 2 pcs - 1 Connector, 1 O-Ring |
