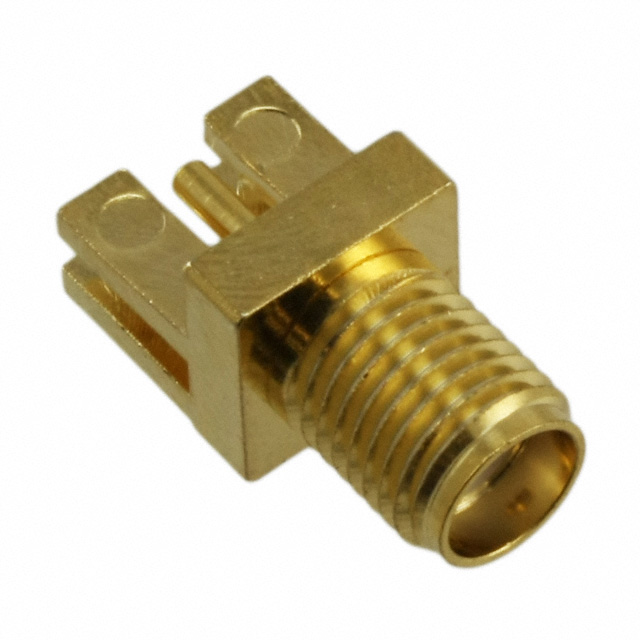

961E504
| Manufacturer | |
| Mfr. Part # | 961E504 |
| EBEE Part # | 9629583-961E504-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | CONN SMA JACK STR 50OHM EDGE MNT |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Coaxial Connectors (RF) | |
| Datasheet | Winchester Interconnect 961E504 | |
| Series | E-Snap™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Jack, Female Socket | |
| Mounting Type | Board Edge, End Launch | |
| Mounting Feature | - | |
| Fastening Type | Threaded | |
| Operating Temperature | -40°C ~ 65°C | |
| Housing Color | Gold | |
| Ingress Protection | - | |
| Features | - | |
| Base Product Number | - | |
| Includes | - | |
| Mfr | Winchester Interconnect | |
| Cable Group | - | |
| Contact Termination | Solder | |
| Impedance | 50 Ohms | |
| Mating Cycles | 500 | |
| Voltage Rating | 500 V | |
| Connector Style | SMA | |
| Body Material | Brass | |
| Body Finish | Gold | |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | |
| Frequency - Max | 12.5 GHz | |
| Center Contact Material | Brass | |
| Center Contact Plating | Gold | |
| Insertion Loss | - | |
| Shield Termination | Solder | |
| Number of Ports | 1 |
Description
SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
